We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

stainless steel downflow booth gmp modular design for biological pharmacy 1
stainless steel downflow booth gmp modular design for biological pharmacy 2
stainless steel downflow booth gmp modular design for biological pharmacy 3
stainless steel downflow booth gmp modular design for biological pharmacy 4
stainless steel downflow booth gmp modular design for biological pharmacy 1
stainless steel downflow booth gmp modular design for biological pharmacy 2
stainless steel downflow booth gmp modular design for biological pharmacy 3
stainless steel downflow booth gmp modular design for biological pharmacy 4

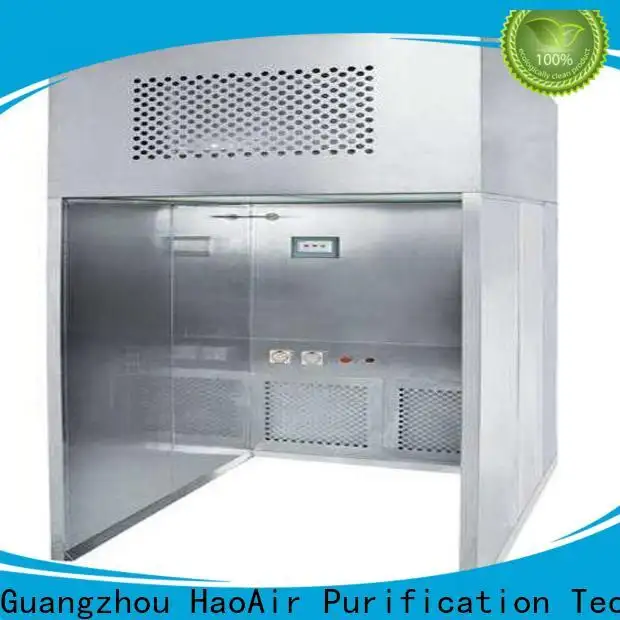

stainless steel downflow booth gmp modular design for biological pharmacy

Brand:
HAOAIRTECH
Model number:
HA-DP1500
Material:
Stainless steel 201(T=1.2mm)
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 Working days
MOQ:
1Sets
Country of Original:
China
Supply ability:
50Set/Per month
Payment term:
T/T IN advance , LC At sight
Application:
Pharmaceutical Factory
Inquiry
Company Advantages
1. HAOAIRTECH dispensing booth pharmaceutical industries is designed by experienced engineers, who have in-depth knowledge about the industrial specifications.
2. The product has won huge attention and praises from customers in the market. The product assures an extremely high-efficient manufacturing process
3. With excellent characteristics like dispensing booth pharmaceutical industries , downflow booth is specially suitable for containment booth . The product features an energy-saving performance
4. downflow booth is thought to be highly marketable due to its dispensing booth pharmaceutical industries . The product comes with 1-2 years of warranty period

Powder Containment Booth



Introduction :


The powder containment booth room is one kind of professional working room which specially used in sampling,
weighting and analysis industry, it can control the working area powder to prohibit them off the working room,
and it is special equipment to control the powder floating, protect operators not breathe the operated powder.



   Powder containment booth provide operator, process and product protection by utilizing HEPA filtered unidirectional

 laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .



stainless steel downflow booth gmp modular design for biological pharmacy 5


Product Features:

Negative Pressure Laminar Flow powder containment booth

GMP Modular design with minimized joints and seams

Purification rank:class 100
Three step filtration system
Fluid seal mini-pleats system
GMP standatd with DOP port testing

Mobile workbenches
Hazardous area electrics option
Flush mounted computer integration
Front/side access doors
PLC controlled audible and visual alarm packages



Products Parameter:



MODELHA-DB1000HA-DB1500HA-DB2000

External size (mm)

(W*D*H)

1200x1500x2400mm1500x1700x2400mm2000x1800x2400mm

Work zone (mm)

(W*D*H)

1100x1200x2000mm1400x1200x2000mm1900x1300x2000mm
Purification rankClass 100(ISO5)
Air speed0.45m/s +_20%

Material

(Option)

1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)

2: External and internal side is steel with power coated. (T=1.2/1.5mm)

Control system

1: Air Speed according to frequency converter control .

2: Gel Sealant High Efficiency HEPA air filter for high purification rank

3: Wind speed detection, Constant temperature and constant humidity

Detector according to client request install

4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time

5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .

6; GMP Modular design with minimized joints and seams.

7: PVC strip curtains available

8; Energy Efficient high air volume fan to minimize operating cost,

Noise level(dB)<65dB
Filter step3 Step
HEPA filter99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filterF8 pocket air filter
Pre-filter EfficiencyG4 Z-Line panel air filter
Power supply380V/50HZ OR 220V/50HZ
Packing materialStandard Export Poly wood Packing(Fumigant free material)


Haoairtech Manfuactory For Powder Containment Booth :


stainless steel downflow booth gmp modular design for biological pharmacy 6


Haoairtech cleint in oversea :


stainless steel downflow booth gmp modular design for biological pharmacy 7


Company Features
1. Since the establishment of Guangzhou HaoAir Purification Technology Co.,Ltd., it has developed rapidly.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has taken macro measures to improve the R&D environment.
3. It is our glorious duty to realize the modernizational improvement of downflow booth industry. Call!
