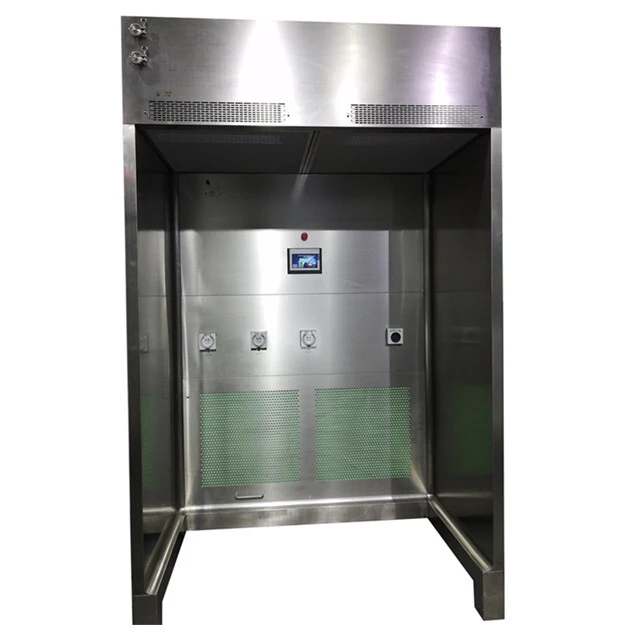

PLC Controlled ISO5 Sampling Booth For Biological Pharmacy 1
PLC Controlled ISO5 Sampling Booth For Biological Pharmacy 1

PLC Controlled ISO5 Sampling Booth For Biological Pharmacy

    oops...!

    no product data.

    Go to homepage

    Introduction:



    Sampling Booth has been designed to provide a Class 100 working environment at rest, with built-in scavenging system to ensure protection for the product, operator and surrounding environment


    Product Features


    Imported Mini-pleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3μ at exhaust position

    haoairtech make pre-filter which conforms to EU 4 Grade, with efficiency of 90% down to 10µ. These Filters are basically made from micro-fibre-glass media and are inherently washable

    haoairtech make Intermediate filter which conforms to EU 7 Grade, with efficiency of 95% down to 3µ. These Filters are basically made from micro-fibre-glass media and are inherently washable

    Motor Blower provided are statically and dynamically balanced, Supply of sufficient capacity and static pressure is used to take care of airflow requirement for entire life of HEPA.

    The blower is high-performance, noise abated, light weighted statically and dynamically balanced

    SS 304 Double Walled Side Panels

    Mechanical Differential Pressure Gauge (0mm-25mm: 2 Nos.) to monitor pressure drop across intermediate filter

    Photohelic Differential Pressure Gauge HEPA filter and  (0mm-10mm: 1 No.)

    To monitor pressure drop across PRE Filter with respect to ambient

    Electrical control panel mounted on the side panel of the unit

    Tube Light

    ON/OFF Switches for motor

    5/15 Amp single-phase switch socket for external equipment

    DOP Test port at upstream of HEPA filter



    Products Parameter

    MODEL

      HA-DB1000

    HA-DB1500

    HA-DB2000

    External size (mm)

    (W*D*H)

    1200x1500x2400mm

    1500x1700x2400mm

    2000x1800x2400mm

    Work zone (mm)

    (W*D*H)

    1100x1200x2000mm

    1400x1200x2000mm

    1900x1300x2000mm

    Purification rank

                        Class 100(ISO5)

    Air speed

                        0.45m/s +_20%

    Material

    Option

    1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)

    2: External and internal side is steel   with power coated. (T=1.2/1.5mm)

    Control system

    1: Air Speed according to frequency   converter control .

    2: Gel Sealant High Efficiency HEPA air   filter for high purification rank

    3: Wind speed detection, Constant   temperature and constant humidity

     Detector according to client request install

    4: DOP/PAO Port and differential Pressure   Guage for HEPA /secondary filter so that remind of you change the air filter   in time

    5: 5 different filter configuration   available utilizing combination of G4,F8.H13,H14 and PLF Screens .

    6; GMP Modular design with minimized   joints and seams.

    7: PVC strip curtains available

    8; Energy Efficient high air volume fan to   minimize operating cost,

    Noise level(dB)

                  <65dB

    Filter step

                   3 Step

    HEPA filter

    99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter

    Secondary filter

           F8 pocket air filter

    Pre-filter Efficiency

    G4 Z-Line panel air filter

    Power supply

     380V/50HZ  OR 220V/50HZ

    Packing   material

    Standard Export Poly wood Packing(Fumigant free material)

    PLC Controlled ISO5 Sampling Booth For Biological Pharmacy 2


    Application:

     Sampling booth is designed such that through the different configurations it can be applied  but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .

    Draw :



    PLC Controlled ISO5 Sampling Booth For Biological Pharmacy 3
