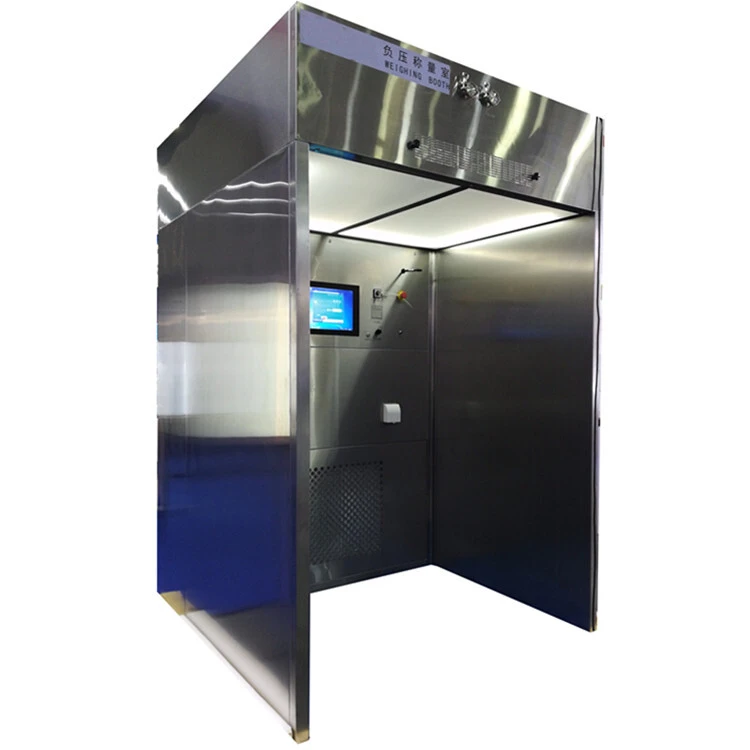

Downflow Booth
Downflow Booth
Introduction:
When you need to provide a clean, contained environment for the safe handling of pharmaceutical powders in dispensing,
weighing, sampling, or subdivision operations, the PharmAir booths are a highly effective option.
By our fully trained engineers to ensure the system fully conforms to your requirements.
To complete the package, our dedicated Aftersales department will supply total support.
Available in epoxy coated zintec steel, 201/304/316L stainless steel or a combination of both.
Various heights and widths (up to 6m) are available Custom filtration designs with a minimum of fine dust and then Hepa filters in either the technical stack or the ceiling plenum.
Single pass/once through airflow systems used in applications where solvent vapors are present.
Product Features:
Stainless steel304/316 or epoxy- coated mild steel construction
High efficiency EC fan system
Safe change the HEPA filter
Overhead lighting with supply plenum
Mobile work benches
Hazardous area electric option
Flush mounted computer integration
From/side access doors
PLC Controlled audible and visual alarm package
High level exhaust grilles
Material and personnel airlocks systems
down flow booth Products Parameter:
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. | ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Warranty:
Our equipment is warranty for 1 years excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
