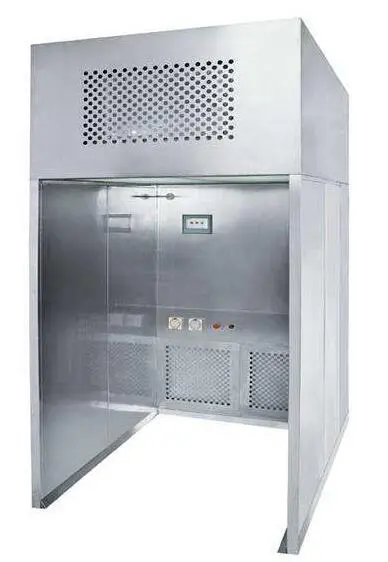

    Powder Containment Booth



    Introduction :


    The powder containment booth room is one kind of professional working room which specially used in sampling,
    weighting and analysis industry, it can control the working area powder to prohibit them off the working room,
    and it is special equipment to control the powder floating, protect operators not breathe the operated powder.



       Powder containment booth provide operator, process and product protection by utilizing HEPA filtered unidirectional

     laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .



    Powder Containment Booth 2


    Product Features:

    Negative Pressure Laminar Flow powder containment booth

    GMP Modular design with minimized joints and seams

    Purification rank:class 100
    Three step filtration system
    Fluid seal mini-pleats system
    GMP standatd with DOP port testing

    Mobile workbenches
    Hazardous area electrics option
    Flush mounted computer integration
    Front/side access doors
    PLC controlled audible and visual alarm packages



    Products Parameter:



    MODELHA-DB1000HA-DB1500HA-DB2000

    External size (mm)

    (W*D*H)

    1200x1500x2400mm1500x1700x2400mm2000x1800x2400mm

    Work zone (mm)

    (W*D*H)

    1100x1200x2000mm1400x1200x2000mm1900x1300x2000mm
    Purification rankClass 100(ISO5)
    Air speed0.45m/s +_20%

    Material

    (Option)

    1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)

    2: External and internal side is steel with power coated. (T=1.2/1.5mm)

    Control system

    1: Air Speed according to frequency converter control .

    2: Gel Sealant High Efficiency HEPA air filter for high purification rank

    3: Wind speed detection, Constant temperature and constant humidity

    Detector according to client request install

    4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time

    5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .

    6; GMP Modular design with minimized joints and seams.

    7: PVC strip curtains available

    8; Energy Efficient high air volume fan to minimize operating cost,

    Noise level(dB)<65dB
    Filter step3 Step
    HEPA filter99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
    Secondary filterF8 pocket air filter
    Pre-filter EfficiencyG4 Z-Line panel air filter
    Power supply380V/50HZ OR 220V/50HZ
    Packing materialStandard Export Poly wood Packing(Fumigant free material)


    Haoairtech Manfuactory For Powder Containment Booth :


    Powder Containment Booth 3


    Haoairtech cleint in oversea :


    Powder Containment Booth 4
