We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

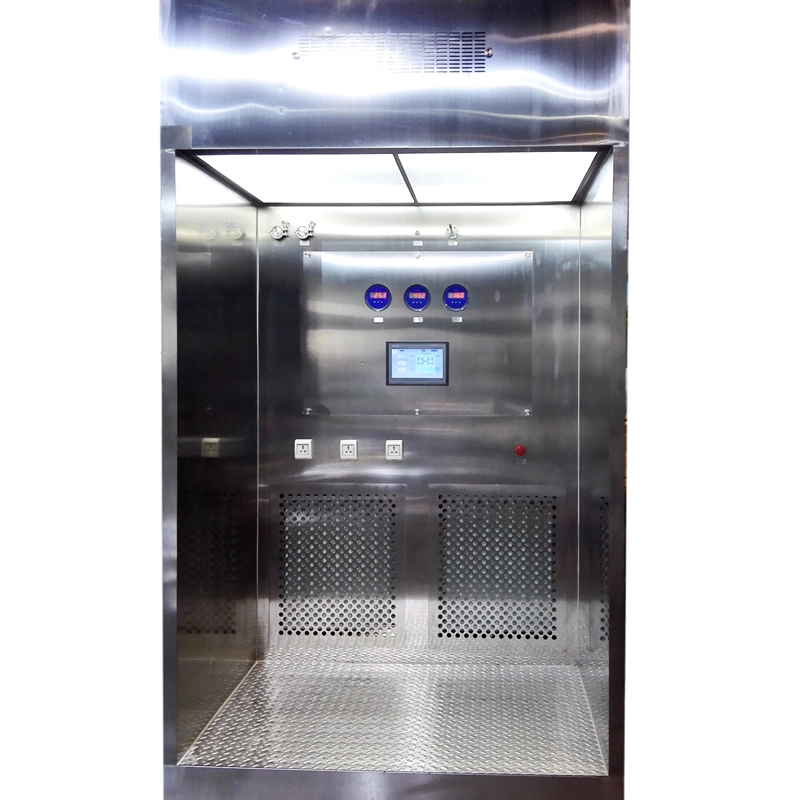

negative pressure down flow booth for pharmaceutical factory

Brand:

HAOAIRTECH

Model number:

HA-DB-B Series

Material:

inside and outside is stainless steel304 (t=1.0mm)

OEM /ODM:

Yes

Certificated:

CE and Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

1sets

Country of Original:

China

Supply ability:

50 set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Write a Review

Product Features

LCD touchable screen display with air speed control
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.

Energy Efficient high air volume fan to minimize operating cost,

5 different filters configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .

Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)

negative pressure down flow booth for pharmaceutical factory 2

Introduction

Down Flow Booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .

/ Products Parameter

MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm) (WDH)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm) (WDH)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.45m/s +_20%
Material（Option）	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm)
Control system	1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams.
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	G4 Z-Line panel air filter
Power supply	380V/50HZ OR 220V/50HZ
Packing material	Standard Export Poly wood Packing(Fumigant free material)

/ Specification

negative pressure down flow booth for pharmaceutical factory 3

/ Product Details

part.2

Downflow booth

part.3

Air speed Test

negative pressure down flow booth for pharmaceutical factory 5

Application

Down Flow Booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .

01
10% exhaust air leaking for negative pressure
02
DOP/PAO port
03
wind speed detector

negative pressure down flow booth for pharmaceutical factory 6

04
Differential pressure guage for perfilter,seondary filter and hepa filter
05
Touchabel Disyplay can control air speed,wind speed detector data,
06
emergency button

negative pressure down flow booth for pharmaceutical factory 7

Waterproof and exlosion-proof socket

negative pressure down flow booth for pharmaceutical factory 8

Per filter

/ Certificated

negative pressure down flow booth for pharmaceutical factory 9

/ Our Service

negative pressure down flow booth for pharmaceutical factory 10

Our Service

1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
