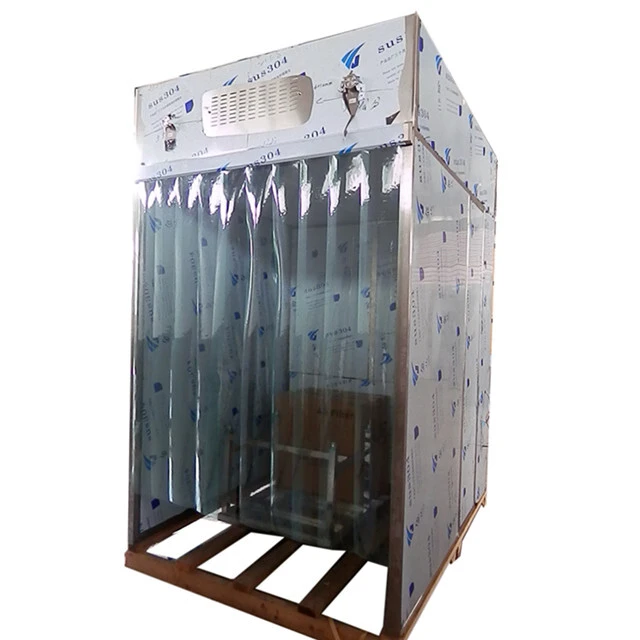

    Pharmaceutical Weighting Booth




    Weighing/Containment booth protects the item of work, operater and environment from contamination.


     weighting booth Control System:


    1: Air Speed according to frequency converter control .

    2: Gel Sealant High Efficiency HEPA air filter for high purification rank

    3: Wind speed detection, Constant temperature and constant humidity

    Detector according to client request install

    4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time

    5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .

    6; GMP Modular design with minimized joints and seams.

    7: PVC strip curtains available

    8; Energy Efficient high air volume fan to minimize operating cost



    Operation principle:

    Fans direct air through package of safe HEPA filters. Air enters the working zone in vertical laminar flow.

     10-15% of air quantity flows to the surrounding environment through other package of HEPA filters,

     increasing overall cleanliness. On the booths bottom air is sucked through pre filters,

    along with 10-15% of surrounding air which makes up the same air quantity that was previously exhausted.

    Afterwards air flows through another set of pre filters and the cycle repeats.

     On the booths entrance air curtain prevents pharmaceutical substances to be contaminated and increases working space

    Pharmaceutical Weighting Booth 2

    MODELHA-DB1000HA-DB1500HA-DB1900

    External size (mm)

    (W*D*H)

    1200x1500x2400mm1500x1700x2400mm2000×2200×2650mm

    Work zone (mm)

    (W*D*H)

    1100x1200x2000mm1400x1200x2000mm1900×1900×2150mm
    Purification rankClass 100(ISO5)
    Air speed0.2-0.7m/s

    Material

    (Option)

    1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)

    2: External and internal side is steel with power coated. (T=1.2/1.5mm)

    Intensity of illumination≥300 Lux
    Noise level(dB)<65dB
    Filter step3 Step
    HEPA filter99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
    Secondary filterF8 pocket air filter
    Pre-filter Efficiency75%@5um
    Power supply380V/50HZ OR 220V/50HZ
    Packing materialStandard Export Poly wood Packing(Fumigant free material)




    Haoairtech  Manufactory :


    Pharmaceutical Weighting Booth 3

    Our Services
    Factory testing (all the sets you ordered):
    All of equipment is individually factory tested for safety and performance in accordance with international Standards.
    Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
    Factory test include:
    --appearance testing
    --functional test and visual inspection
    --electrical safety tests
    --air velocity testing
    --noise testing
