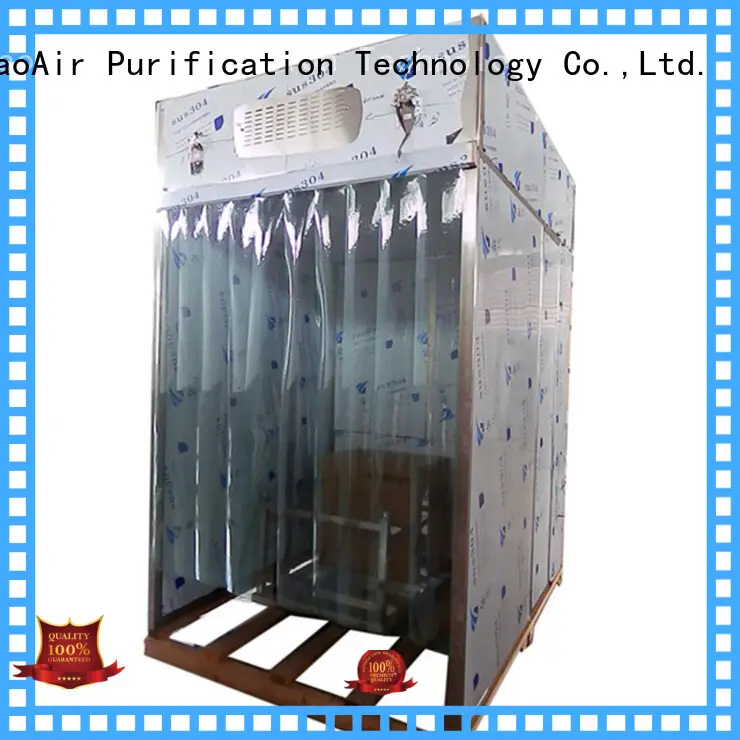

stainless steel dispensing booth with lcd touchable screen display for biological pharmacy

Company Advantages
1. HAOAIRTECH dispensing booth is produced as per the industry specifications.
2. Compared with other products, this product has obvious advantages, longer service life and more stable performance. It has been tested by authoritative third parties.
3. This product is durable and suitable for long-term use and storage.
4. By optimizing the quality of dispensing booth , HAOAIRTECH has been more popular than before.
5. It meets the more and more complicate requirements from the market, thus having wide development prospects.

Pharmaceutical Weighting Booth



Weighing/Containment booth protects the item of work, operater and environment from contamination.

 weighting booth Control System:

1: Air Speed according to frequency converter control .

2: Gel Sealant High Efficiency HEPA air filter for high purification rank

3: Wind speed detection, Constant temperature and constant humidity

Detector according to client request install

4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time

5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .

6; GMP Modular design with minimized joints and seams.

7: PVC strip curtains available

8; Energy Efficient high air volume fan to minimize operating cost

Operation principle:

Fans direct air through package of safe HEPA filters. Air enters the working zone in vertical laminar flow.

 10-15% of air quantity flows to the surrounding environment through other package of HEPA filters,

 increasing overall cleanliness. On the booths bottom air is sucked through pre filters,

along with 10-15% of surrounding air which makes up the same air quantity that was previously exhausted.

Afterwards air flows through another set of pre filters and the cycle repeats.

 On the booths entrance air curtain prevents pharmaceutical substances to be contaminated and increases working space

MODEL	HA-DB1000	HA-DB1500	HA-DB1900
External size (mm) (W*D*H)	1200x1500x2400mm	1500x1700x2400mm	2000×2200×2650mm
Work zone (mm) (W*D*H)	1100x1200x2000mm	1400x1200x2000mm	1900×1900×2150mm
Purification rank	Class 100(ISO5)
Air speed	0.2-0.7m/s
Material (Option)	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm)
Intensity of illumination	≥300 Lux
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	75%@5um
Power supply	380V/50HZ OR 220V/50HZ
Packing material	Standard Export Poly wood Packing(Fumigant free material)



Haoairtech  Manufactory :

Our Services
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
