We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

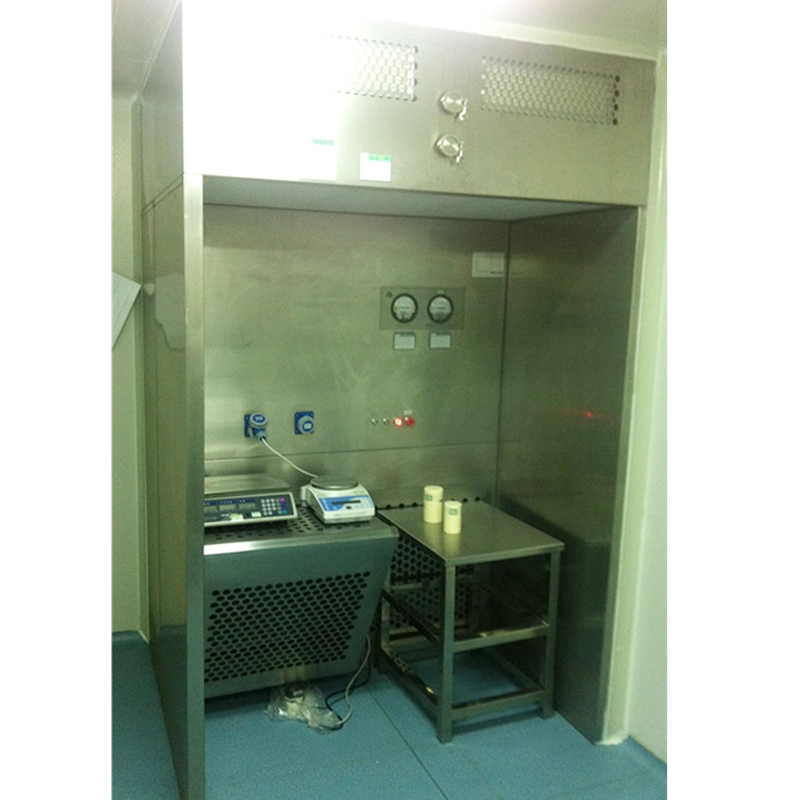

Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 1
Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 2
Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 1
Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 2

Pharmaceutical factory ISO5 Dispensing Booth for Dust control

    oops...!

    no product data.

    Go to homepage



    Product Features
    Negative Pressure Laminar Flow
    GMP Modular design with minimized joints and seams.
    5 different filters configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
    Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
    Purification rank: Class100 /ISO5
    Air speed: 0.45m/s+_20%
    10% Exhaust air leaking (Adjustable)
    Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 3


    / Products Parameter


    MODEL

      HA-DB1000

    HA-DB1500

    HA-DB2000

    External size (mm)
         (W*D*H)

    1200x1500x2400mm

    1500x1700x2400mm

    2000x1800x2400mm

    Work zone (mm)
         (W*D*H)

    1100x1200x2000mm

    1400x1200x2000mm

    1900x1300x2000mm

    Purification rank

                        Class 100(ISO5)

    Air speed

                        0.45m/s +_20%

    Material(Option)

    1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)
    2: External and internal side is steel    with power coated. (T=1.2/1.5mm)

    Control system

    1: Air Speed according to frequency    converter control .
    2: Gel Sealant High Efficiency HEPA air    filter for high purification rank
    3: Wind speed detection, Constant    temperature and constant humidity
    Detector according to client request install
    4: DOP/PAO Port and differential Pressure    Guage for HEPA /secondary filter so that remind of you change the air filter    in time

    5: 5 different filter configuration    available utilizing combination of G4,F8.H13,H14 and PLF Screens .
    6; GMP Modular design with minimized    joints and seams.
    7: PVC strip curtains available
    8; Energy Efficient high air volume fan to    minimize operating cost,

    Noise level(dB)

                  <65dB

    Filter step

                   3 Step

    HEPA filter

    99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter

    Secondary filter

           F8 pocket air filter

    Pre-filter Efficiency

    G4 Z-Line panel air filter

    Power supply

     380V/50HZ  OR 220V/50HZ

    Packing    material

    Standard Export Poly wood Packing(Fumigant free material)



    / Specification


    Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 4



    / Product Details



    part.1
    DOP port
    Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 5

    part.2
    Control System
    Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 6

    part.3
    Air speed Test
    Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 7


    Application

    Dispensing booth is designed such that through the different configurations it can be applied  but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .



    / Certificated

    Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 8





    / Our Service


    Pharmaceutical factory  ISO5 Dispensing Booth for Dust control 9

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
