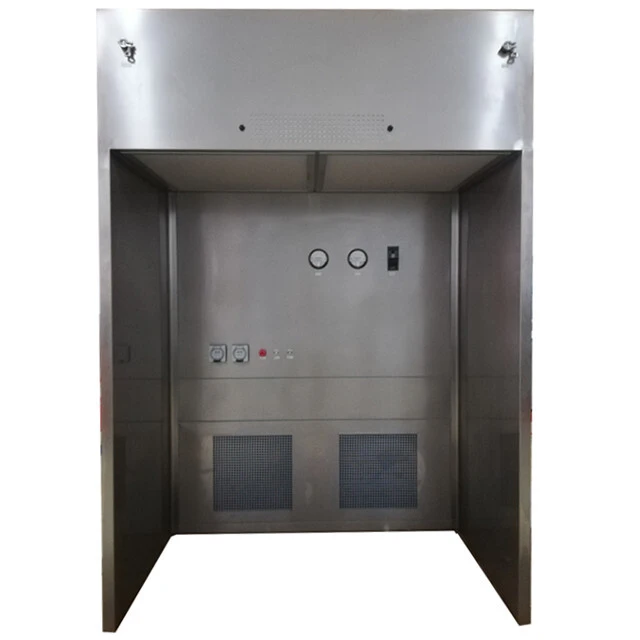

Stainless Steel 316 Down Flow Containment Booth For Pharmacon 1
Stainless Steel 316 Down Flow Containment Booth For Pharmacon 1

Stainless Steel 316 Down Flow Containment Booth For Pharmacon

    oops...!

    no product data.

    Go to homepage

    Introduction:



    When you need to provide a clean, contained environment for the safe handling of pharmaceutical powders in dispensing,

    weighing, sampling, or subdivision operations, the PharmAir booths are a highly effective option.

     By our fully trained engineers to ensure the system fully conforms to your requirements.

     To complete the package, our dedicated Aftersales department will supply total support.

    Available in epoxy coated zintec steel, 201/304/316L stainless steel or a combination of both

    Various heights and widths (up to 6m) are available

    Custom filtration designs with a minimum of fine dust and then Hepa filters in either the technical stack or the ceiling plenum

    Single pass/once through airflow systems used in applications where solvent vapors are present





    Product Features

    Stainless steel or epoxy- coated mild steel construction

    High efficiency EC fan system

    Safe change the HEPA filter

    Overhead lighting with supply plenum

    Mobile work benches

    Hazardous area electric option

    Flush mounted computer integration

    From/side access doors

    PLC Controlled audible and visual alarm package

    High level exhaust grilles

    Material and personnel airlocks systems



    Products Parameter



    MODEL

      HA-DB1000

    HA-DB1500

    HA-DB2000

    External size (mm)

    (W*D*H)

    1200x1500x2400mm

    1500x1700x2400mm

    2000x1800x2400mm

    Work zone (mm)

    (W*D*H)

    1100x1200x2000mm

    1400x1200x2000mm

    1900x1300x2000mm

    Purification rank

                        Class 100(ISO5)

    Air speed

                        0.45m/s +_20%

    Material

    Option

    1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)

    2: External and internal side is steel   with power coated. (T=1.2/1.5mm)

    Control system

    1: LCD touchable screen display with air   speed adjustable and constant temperature and constant humidity data check.

    2: Gel Sealant High Efficiency HEPA air   filter for high purification rank

    3: Wind speed detection, Constant   temperature and constant humidity

     Detector according to client request install

    4: DOP/PAO Port and differential Pressure   Guage for HEPA /secondary filter so that remind of you change the air filter   in time

    5: 5 different filter configuration   available utilizing combination of G4,F8.H13,H14 and PLF Screens .

    6; GMP Modular design with minimized   joints and seams.



    Noise level(dB)

                  <65dB

    Filter step

                   3 Step

    HEPA filter

    99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter

    Secondary filter

           F8 pocket air filter

    Pre-filter Efficiency

    G4 Z-Line panel air filter

    Power supply

     380V/50HZ  OR 220V/50HZ

    Packing   material

    Standard Export Poly wood Packing(Fumigant free material)

     Stainless Steel 316 Down Flow Containment Booth For Pharmacon 2
