We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

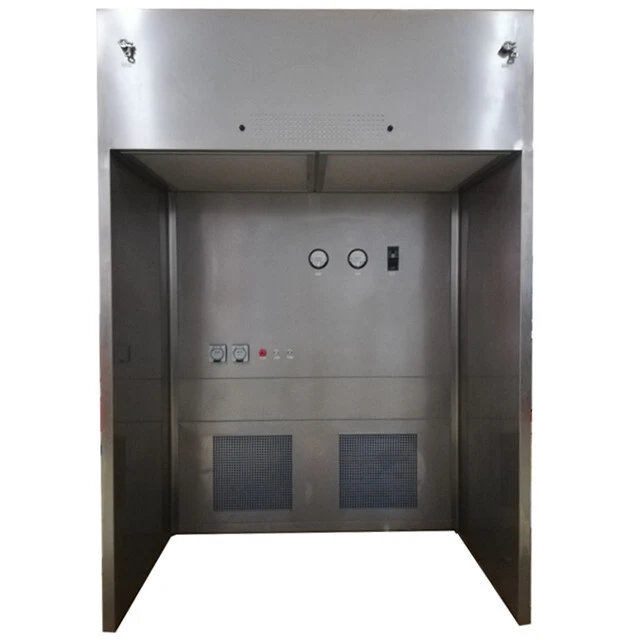

Non-standard Customized Dispensing Booth of Pharmaceutical Factory 1
Non-standard Customized Dispensing Booth of Pharmaceutical Factory 2
Non-standard Customized Dispensing Booth of Pharmaceutical Factory 1
Non-standard Customized Dispensing Booth of Pharmaceutical Factory 2

Non-standard Customized Dispensing Booth of Pharmaceutical Factory

    oops...!

    no product data.

    Go to homepage

    Introduction:

    The dispensing booth is a local purification device for pharmaceutical, microbiological research and scientific experiments.
    It provides a vertical unidirectional airflow. Part of the clean air circulates in the working area and is partially discharged to the nearby area to make the working area negative pressure to prevent cross-contamination and to ensure a high cleanliness environment in the work area.
    Dust, reagent weighing and dispensing in the dispensing booth can control dust, reagent spillage and uplift, prevent dust and reagents from inhaling harm to the human body, avoid cross-contamination of dust and reagents, and protect the environment and indoor personnel.
    The weighing operating area is protected by a thousand vertical laminar flow ISO 6 (NF, EN, ISO 14644-1).


    Features:

    1.the special air dust design with a high performance at decrease the noise.
    2.the air out let operate system can control the powder and reagent over flowing or raise. prevent the powder and reagent cross infection.protect the worker out of harmful.
    3.pressure guage will monitor the HEPA air filter situation.
    4.humanization design for your easy to change the HEPA air filter.

    Product Details:

    1.The order from left to right is the differential pressure gauge of the medium efficiency filter, the differential pressure gauge of the high efficiency filter and the frequency converter.
      An initial filter differential pressure gauge and LED display can also be installed.
    2.This is the socket and emergency stop switch.
    3.The wind speed in the dispensing booth is constant, which is 0.63m/s.

    Non-standard Customized Dispensing Booth of Pharmaceutical Factory 3

    Product parameters:


    MODEL

    HA-DB1000

    HA-DB1500

    HA-DB2000

    External size (mm)

    (W*D*H)

    1200x1500x2400mm

    1500x1700x2400mm

    2000x1800x2400mm

    Work zone (mm)

    (W*D*H)

    1100x1200x2000mm

    1400x1200x2000mm

    1900x1300x2000mm

    Purification rank

    Class 100(ISO5)

    Air speed

    0.2-0.7m/s

    Material

    (Option)

    1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm)

    2: External and internal side is steel with power coated. (T=1.2/1.5mm)

    Control system

    1: Air Speed according to frequency converter control .

    2: Gel Sealant High Efficiency HEPA air filter for high purification rank

    3: Wind speed detection, Constant temperature and constant humidity

    Detector according to client request install

    4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time

    5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .

    6; GMP Modular design with minimized joints and seams.

    7: PVC strip curtains available

    8; Energy Efficient high air volume fan to minimize operating cost,

    Noise level(dB)

    <65dB

    Filter step

    3 Step

    HEPA filter

    99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter

    Secondary filter

    F8 pocket air filter

    Pre-filter Efficiency

    75%@5um

    Power supply

    380V/50HZ OR 220V/50HZ

    Packing material

    Standard Export Poly wood Packing(Fumigant free material)


    Customer's design is available.

    Non-standard Customized Dispensing Booth of Pharmaceutical Factory 4
