Company Advantages1. HAOAIRTECH laminar flow booth flexibly adopts elements of design to create visual beauty. Seams, tucks, darts, pleats, hemlines, panels are some of the elements could be incorporated while constructing this product. The product has passed strict air speed test
2. Guangzhou HaoAir Purification Technology Co.,Ltd. stands in the perspective of the customer to consider all details. With the shell galvanized, the product is crack-resistant and wear-resistant
3. The product is resistant to extreme heat and cold. Treated under various temperature variates, it will not prone to crack or deform under high or low temperatures. The product can be used to save time for cleaning and vacuuming
4. The product is stain resistant. Its sleek surface is able to resist all liquid stains, and it is easily wiped clean.
Product Features
Four side corner and corner line is circle design prevent dust accumulation
LCD touchable screen display with air speed control
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14
and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
Introduction

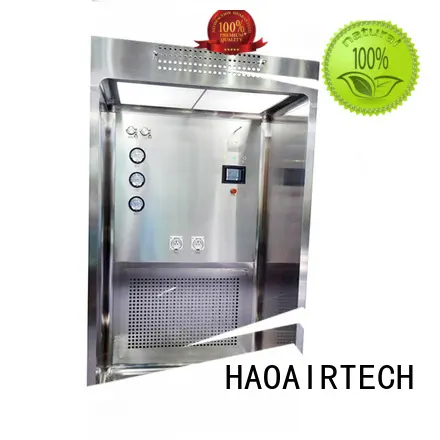

Weighting booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
/ Products Parameter
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm)
(W*D*H) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm)
(W*D*H) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) |
Air speed | 0.45m/s +_20% |
Material(Option) | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install . 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: Four side corner and corner line is circle design prevent dust accumulation |
Noise level(dB) | <65dB |
Filter step | 3 Step |
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter |
Secondary filter | F8 pocket air filter |
Pre-filter Efficiency | G4 Z-Line panel air filter |
Power supply | 380V/50HZ OR 220V/50HZ |
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
/ Specification
![stainless steel dispensing booth supplier for pharmacon 10]()
/ Product Details
Application
Weighting booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
/ Certificated
![stainless steel dispensing booth supplier for pharmacon 14]()
/ Our Service
Our Service
1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features1. It is solid technical foundation that makes Guangzhou HaoAir Purification Technology Co.,Ltd. stands out in dispensing booth industry.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.' purpose is to strengthen its technological power to be an expert in weighing booth field. Get quote!
