We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

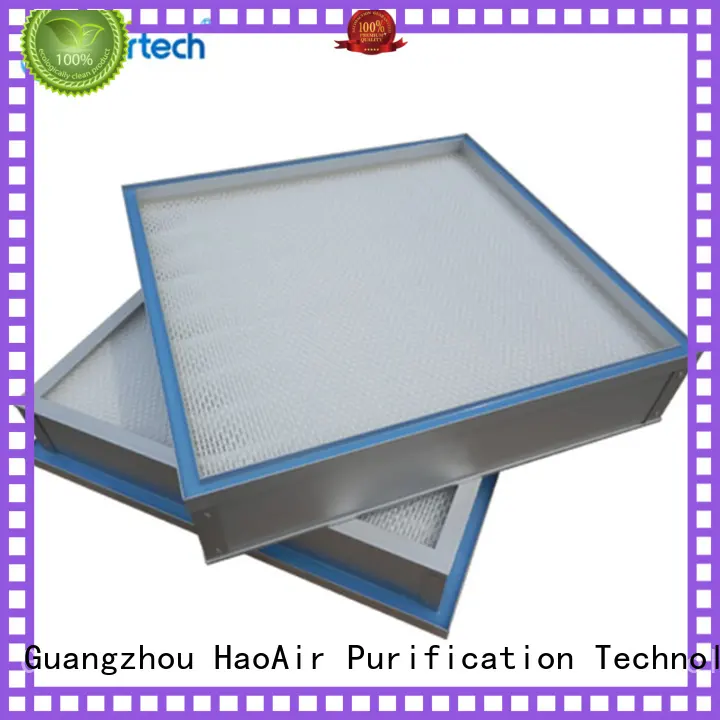

HAOAIRTECH gel seal air filter hepa with dop port for electronic industry 1

HAOAIRTECH gel seal air filter hepa with dop port for electronic industry 2

HAOAIRTECH gel seal air filter hepa with dop port for electronic industry 3

HAOAIRTECH gel seal air filter hepa with dop port for electronic industry

Brand:

HAOAIRTECH

Model number:

HA-HPG

Material:

Aluminum frame

OEM /ODM:

OEM/ODM

Certificated:

SGS

Start port:

HUANGPU,GUANGZHOU

Delivery time:

10 Working days

MOQ:

10sets

Country of Original:

china

Supply ability:

1000sets/per month

Payment term:

T/T IN advance, LC At sight

Application:

HVAC terminal filtration

Inquiry

Product Comparison

best hepa filters is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with other same kind of products in the market, HaoAir's best hepa filters is equipped with the following outstanding advantages.

Company Advantages
1. HAOAIRTECH air filter hepa is developed using advanced technology under the guideline of lean production.
2. One of the key strengths of this product is that after the parts it joins are disconnected and the compression forces acting on it are removed, it will return to its original shape.
3. The product features the desired hardness. It has resistance to localized deformation such as indentation, scratching, cutting or bending.
4. This product demonstrates greater energy efficiency than comparable products and is, therefore, more widely accepted by regulators, buyers, and consumers. It enjoys an important advantage in a competitive marketplace.

Pharmaceutical Gel Seal HEPA Filter

HAOAIRTECH gel seal air filter hepa with dop port for electronic industry 6

Introduce:

These two gel types provide a physically compliant,

air tight seal between the HEPA filter frame and its housing.

Both contain similar characteristics in terms of elasticity, surface tack and softness and will perform the basic job of sealing HEPA filters to the air delivery system.

However there is a wider acceptance of Silicone gels in general HEPA applications.

Silicone gels are produced by several major corporations and are included in a range of electrical, electronic, vibration damping and sealing applications. They are generally more resistant to chemical breakdown and enable higher usage temperatures; but are also relatively high in cost, and may suffer cure inhibition when applied directly to some incompatible substrates.

Polyurethane gels are not commonly used by many HEPA filter manufacturers. Although they are relatively low cost and offer fairly good chemical resistance, commonly cited disadvantages include high moisture sensitivity of the unreacted components resulting in a limited raw material shelf-life, less resistance to chemical breakdown and incompatibility with certain substrates that may result in cure inhibition.

HEPA Filter Condition :

1.Style	Pleat,Folding
2.Feature	Dust collection, Large dust collection,High quality,High efficiency
3.Material	glassfiber paper, PTFE
4.Size	OEM ,Customizing is welcome
5.Color	White
6.Frame	Aluminum alloy,
7.Protect mesh	Aluminum mesh or spray iron mesh
8.Is used to	The factory building,clean room ventilation system filters,HVAC AHU
9.Efficiency	H10 H11 H12 H13 H14 U15 U16 U17
10.Weight	6kg

Products Parameter：

Cabinet size (mm) (WHD)	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance (Pa)	Finally Resistance (Pa)	Efficiency
510X510X69	600	6.6	400	<200pa	400-600pa	H13-H14
636X636X69	1000	10.7	650
596X1196X69	1800	18.3	1100
636X1236X69	2100	21.3	1000
346X346X93	400	4.2	250
510X510X93	900	9.42	565
636X636X93	1500	14.9	900
636X941X93	2000	22.3	1200
626X1226X93	2800	29.8	1800
621X621X93	1380	14.19	851
636X1246X93	2800	29.8	1800
596X1196X93	2550	26.28	1577
656X994X93	2350	24.15	1449
350X350X96	500	4.68	300
514X514X96	1000	Contact us we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries. input must not exceed 280 in length! name Please enter a valid email address! email input must not exceed 280 in length! phone textarea must not exceed 65530 in length! content you might like Cleanroom Equipment Air Filter Stainless Steel Furniture Ducted Ceiling HEPA Module Electronical Laboratory Pass Box To Clean Room High Efficient Auto Door Air Shower Air Shower Pass Box Clean Room Industry Automatic Sole cleaning machine for cleanroom air shower no data HaoAirTech has become one of the most competitive air filter manufacturers with key strengths in industry experience, professional team and premium services. Company home About Us Air Filter Cleanroom Equipment Custom Service Application Info Center Contact Us Products HEPA & ULPA Air Filter High Temperature Filter Rigid Box Filter Bag & Pocket Air Filter Pleated Air Filter Panel Air filter Active Carbon Air Filter Air Filter Accessories Contact Us Tel: +86 020-22139352 Email: sales2@haoairtech.com Add: RM323 KaiSheng Building,CongYun RoadYongping street ,Baiyun District, Guang Zhou, Guangdong, China Copyright © 2025 HaoAirTech \| Sitemap \| Privacy Policy Contact Us Leave your inquiry, we will provide you with quality products and services! input must not exceed 280 in length! name Please enter a valid email address! email The input length cannot be less than 10! content Customer service
