We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

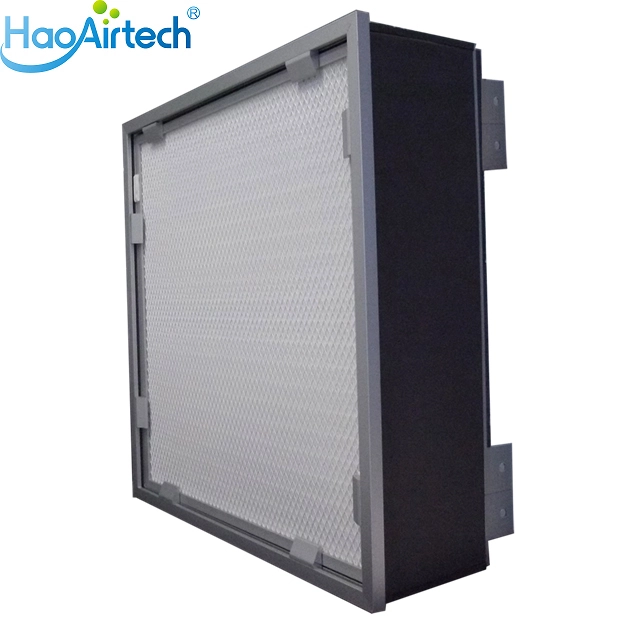

Ducted Ceiling HEPA Module 1
Ducted Ceiling HEPA Module 1

Ducted Ceiling HEPA Module

    oops...!

    no product data.

    Go to homepage


       Ducted Ceiling HEPA Module


        Characteristics:

    The ducted ceiling HEPA Moudle cabinet are designed in closed integration which prevent the air leakage.

    Meanwhile the heap filter replaceable from cleanroom inside.

    This filter light weight and easy maintain

    Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose

    Control valve for air flow adjust (optional).

    The media material is super glass fibre for 0.3um particulate.

    100 % provide the test report for each mini-pleats HEPA air filter

    Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um



    Ducted Ceiling HEPA Module 2


    ducted ceiling HEPA Moudle Operating Conditions:

    Media

    Super glass fibre

    Frame

    AL/GL frame

    Gasket

    Neoprene /EVA

    Media Spacer

    Hot melt

    Cabinet Thickness (Mm)

    150/180mm

    Filter Frame

    69mm

    Efficiency

    99.99%-99.999%@0.3um

    Max Temperature

    70℃

    Max Humidity

    100%

    Ducted Ceiling HEPA Module 3

    Products Parameter

    Cabinet size (mm)
    (W*H*D)

    Filter size
    (mm)
    (W*H*D)

    Rate
    Air Flow
    (m3/h)

    Media Area
    (m2)

    Dust
    Holding
    (g)

    Rate primary
    Resistance
    (Pa)

    Finally
    Resistance
    (Pa)

    Efficiency

    360X360X180

    320x320x69

    264

    2.93

    126



    <220pa



    400-600pa



    H13-H14

    524X524X180

    484x484x69

    600

    6.61

    397

    650X650X180

    610x610x69

    1000

    10.44

    627

    670X670X180

    630x630x69

    1050

    11.13

    668

    650X955X180

    610x915x69

    1500

    15.42

    925

    650x1260x180

    610x1220x69

    2000

    20.40

    1224

    670x1300x180

    630x1260x69

    2100

    21.76

    1306

    345x345x180

    305x305x69

    240

    2.66

    160

    345x650x180

    305x610x69

    500

    5.09

    305

    345x955x180

    305x915x69

    750

    7.52

    450

    640x640x180

    600x600x69

    980

    10.11

    607

    640x1240x180

    600x1200x69

    1980

    19.74

    1185

    650x1280x180

    610x1240x69

    2050

    20.74

    1244

    524x1008x180

    484x968x69

    1250

    12.85

    771


    Application:

    The replaceable HEPA air filter with hood suitable for high and strict working environment such

    as surgery, lab, pharmacy , micro-electric ,film production in terminal filtration of the air-condition filtration system



       Warranty:



      Our equipment is warranty for 1 year excluding consumable parts and accessories.

      All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

      Additional IO/OQ/GMP document is available upon request.

     Contact our sales representative for specific warranty details or document request.





      Consumable parts illustration:



      1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



      2: HEPA filter: each one should be replacement in each half and one years.
