We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

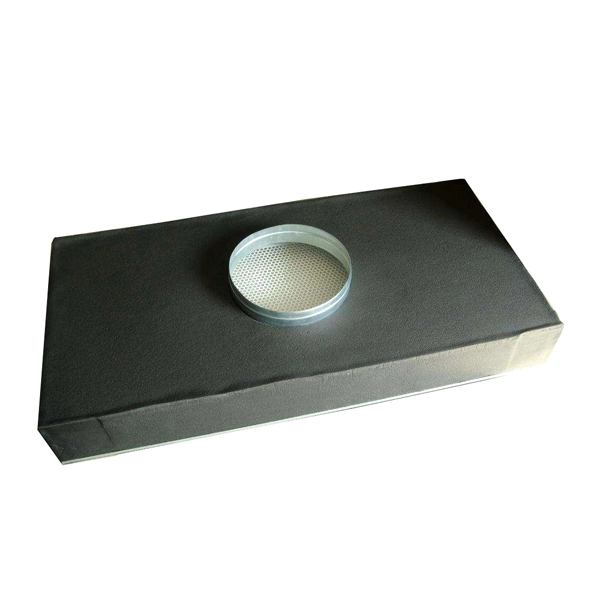

Disposable mini-pleats HEPA Air Filter With Hood 1
Disposable mini-pleats HEPA Air Filter With Hood 1

Disposable mini-pleats HEPA Air Filter With Hood

    oops...!

    no product data.

    Go to homepage



    Characteristics
    The disposable HEPA filter cabinet are designed in closed integration which prevent the air leakage
    The fast install and easy to maintain,
    Air duct is galvanized steel and the diameter is 250mm or 305mm for your choose Control valve for air flow adjust (optional).
    The media material is super glass fibre for 0.3um particulate。
    Extrude and anodized aluminum or galvanized frame in 120 or 150 for choose。
    Outside is black color PEFT cotton for preservation HVAC energy.
    100 % provide the test report for each mini-pleats HEPA air filter
    Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
    Applied to the terminal filtration of the air-condition filtration system
    Disposable mini-pleats HEPA Air Filter With Hood 2



    / Operating Conditions


     Media

    Super    glass fibre

     Frame

    AL/GL frame

    Gasket

    Neoprene or EVA

    Media spacer

    Hot melt

    Frame thickness    (mm)

    120/150/220mm

    Outside

    PEF Cotton

    Efficiency

    99.99%-99.999%@0.3um

    Max Temperature

    80℃

    Max Humidity

    100%



    / Products Parameter


    Dimension(mm)
    (W*H*D)

    Rate
         Air Flow
     (m3/h)

    Media Area(m2)

    Dust
         Holding
    (g)

    Rate primary
         Resistance
    (Pa)

    Finally
         Resistance
     (Pa)

    Efficiency

    610X610X120

    1000

    11.32

    680















    <220pa















    400-600pa















    H13-H14

    610X915X120

    1500

    16.7

    1002

    600X1200X120

    1950

    21.4

    1283

    610X1220X120

    2000

    22.1

    1326

    610X610X150

    1270

    14.14

    850

    610X915X150

    1900

    20.8

    1253

    600X1200X150

    2400

    26.73

    1604

    610X1220X150

    2500

    27.65

    1660

    610X610X220

    1550

    17.41

    1044

    610X915X220

    2300

    25.7

    1542

    600X1200X220

    2950

    32.89

    1974

    610X1220X220

    3000

    34

    2040



    / Product Details



    part.1
    Disposable HEPA air filter
    Disposable mini-pleats HEPA Air Filter With Hood 3

    part.2
    Mini-Pleats Media Compact
    Disposable mini-pleats HEPA Air Filter With Hood 4

    part.3
    Air Filter Dust Detection Test
    Disposable mini-pleats HEPA Air Filter With Hood 5


    Application

    The disposable HEPA air filter with hood adopt closed design to avoid gap and air leak, it achieves the high purifying requirement for the cleanroom, so this product  use for the operating room, lab, pharmacy room ,micro-electric ,food stuff processing factory and so on.



    / package


    Disposable mini-pleats HEPA Air Filter With Hood 6
    Disposable mini-pleats HEPA Air Filter With Hood 7
    Disposable mini-pleats HEPA Air Filter With Hood 8
