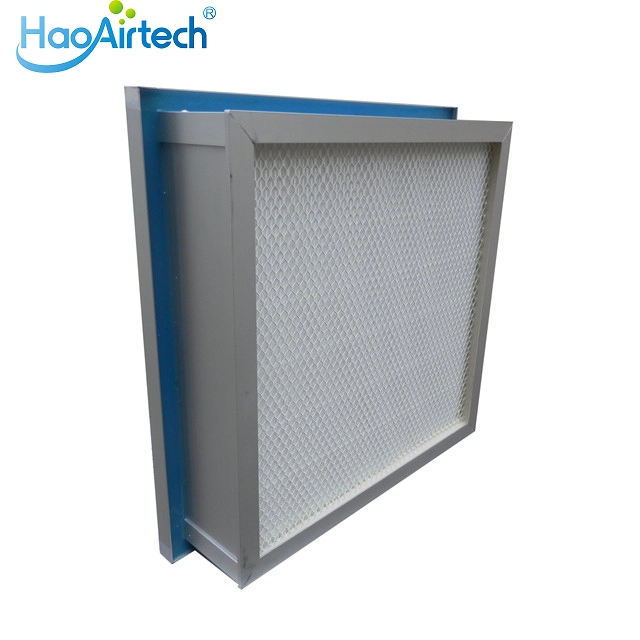

    Hospital Gel Sealant HEPA Filter


    Features:
    1. Light weight, economic cost
    2. Disposable products, environmentally.
    3. Low resistance, large filter area and air volume
    4. Cardboard frame with special process, with long working time.
    5. Thickness available:69mm, 93mm, 96mm,etc.

    Hospital Gel Sealant HEPA Filter 2


    Introduce :


           Common Applications: Filtering 0.3 microns or less suspended particles in the air, it is widely used in the terminal filtration of the civil or industrial cleaner places requiring a higher

                                              degree of cleanliness such as electronics, semiconductor, precision machinery, pharmaceuticals, hospitals, food etc.


               Features:  Adopting the superfine fiberglass filter paper as the media, separated by hot melt adhesive and fiberglass thread, sealed by top quantity gel seal,

                                  aluminum alloy frame with combined spray protection network both in the outlet and inlet side to protect filter paper. Low loss, high efficiency, light weight,

                                  it is tested precisely one by one.
                                Frame: Aluminum

                               Temperature resistance: 80 ℃

    Hospital Gel Sealant HEPA Filter 3

    Products Parameter

    Cabinet size    (mm)

    (W*H*D)



      Rate

    Air Flow

      (m3/h)

    Media Area

       (m2)

    Dust

    Holding

       (g)

    Rate primary

    Resistance

       (Pa)

     Finally

    Resistance

       (Pa)

    Efficiency

    510X510X69

    600

    6.6

    400









    <200pa









    400-600pa









    H13-H14

    636X636X69

    1000

    10.7

    650

    596X1196X69

    1800

    18.3

    1100

    636X1236X69

    2100

    21.3

    1000

    346X346X93

    400

    4.2

    250

    510X510X93

    900

    9.42

    565

    636X636X93

    1500

    14.9

    900

    636X941X93

    2000

    22.3

    1200

    626X1226X93

    2800

    29.8

    1800

    621X621X93

    1380

    14.19

    851

    636X1246X93

    2800

    29.8

    1800

    596X1196X93

    2550

    26.28

    1577

    656X994X93

    2350

    24.15

    1449

    350X350X96

    500

    4.68

    300

    514X514X96

    1000

    10.62

    650




    640X640X96

    1500

    16.8

    1000






    Hospital Gel Sealant HEPA Filter 4
