We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

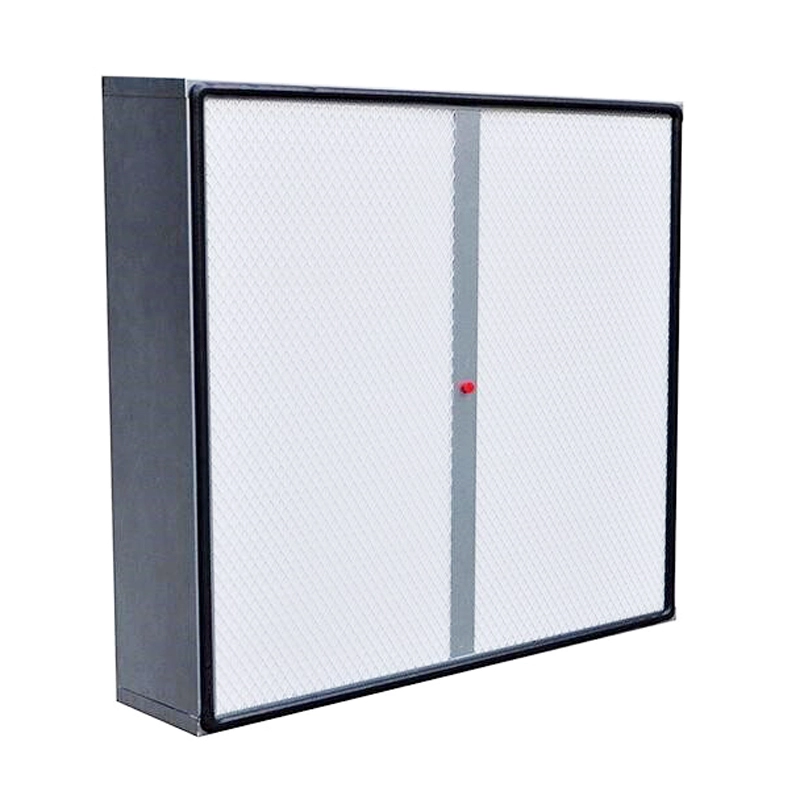

H14 HEPA Air Filter With DOP Port 1
H14 HEPA Air Filter With DOP Port 2
H14 HEPA Air Filter With DOP Port 3
H14 HEPA Air Filter With DOP Port 1
H14 HEPA Air Filter With DOP Port 2
H14 HEPA Air Filter With DOP Port 3

H14 HEPA Air Filter With DOP Port

    oops...!

    no product data.

    Go to homepage



    Characteristics
    Hepa air filter with DOP port used super glass fibre for 0.3um particulate.
    It is patent technology to ensure the V type passage in low resistance.
    Neoprene /EVA or PU gasket prevent the air leaking in operation.
    Aluminum or SUS Frame in 120mm and 150mm for choose.
    While color metal screen to protect the filtration media without any damage.
    Adopting the laser to scan the filter one by one (MPPS).
    100 % provide the test report for each HEPA air filter
    Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
    Applied to the terminal filtration of the air-condition filtration system
    H14 HEPA Air Filter With DOP Port 4



    / Operating Conditions


    Media

    Super glass fibre

    Frame

    AL /SUS201/304 frame

    Gasket

    Neoprene /EVA or PU

    Media spacer

    Hot melt

    Frame thickness (mm)

    120/150mm

    Screen

    Metal screen

    Efficiency

    H13:99.97-99.99%@0.3um
    H14: 99.995-99.999%@0.3um

    Max Temperature

    70℃

    Max Humidity

    80%



    / Products Parameter


    Dimension (mm)
       (W*H*D)

    Rate Air Flow
    (m3/h)

    Media Area (m2)

    Dust Holding
    (g)

    Rate primary
    Resistance
    (Pa)

    Finally
     Resistance
    (Pa)



    Efficiency

    610X610X120

    1000

    11.32

    680





    H13 :<200Pa
           H14 :<220pa





    400-600pa





    H13-H14

    915X610X120

    1500

    16.71

    1000

    1170X570X120

    1800

    19.79

    1200

    1220X610X120

    2000

    22.1

    1350

    610X610X150

    1250

    14.14

    850

    915X610X150

    1900

    20.88

    1250

    1170X570X150

    2200

    24.741

    1500

    1220X610X150

    2500

    27.63

    1660



    / Primary Resistance & Face Velocity Diagram


    H14 HEPA Air Filter With DOP Port 5



    / Product Details



    part.1
    HEPA air filter with DOP Port
    H14 HEPA Air Filter With DOP Port 6

    part.2
    Mini-Pleats Media Compact
    H14 HEPA Air Filter With DOP Port 7

    part.3
    Air Filter Dust Detection Test
    H14 HEPA Air Filter With DOP Port 8


    Application

    Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical ,

    bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .



    / package


    H14 HEPA Air Filter With DOP Port 9
    H14 HEPA Air Filter With DOP Port 10
    H14 HEPA Air Filter With DOP Port 11
