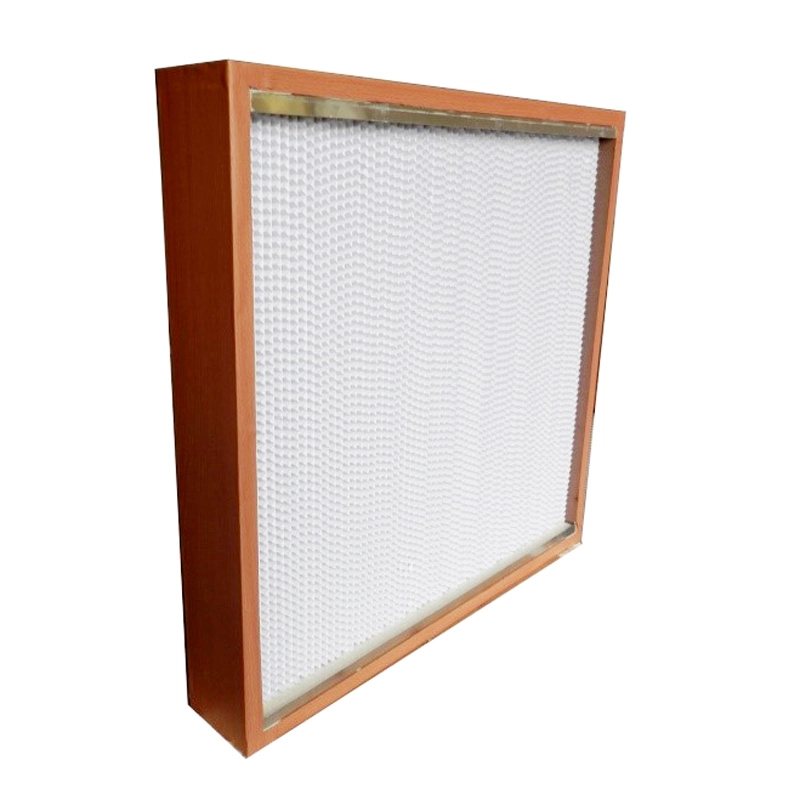

HEPA Air Filter with Paper Clapboard

Brand:

HAOAIRTECH

Model number:

HA-HEPA-P Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Supply ability:

500set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Write a Review

Characteristics

The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation.
MDF frame in 120mm, 150mm, 220mm for choose.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%

Introduce

Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

/ Operating Conditions

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media spacer	Hot melt
Frame thickness (mm)	120/150/220
Clapboard	120g/m paper
Efficiency	99.99%-99.999%@0.3um
Max Temperature	80℃
Max Humidity	80%

/ Products Parameter

Dimension(mm) (WHD)	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance(Pa) (H13-H14)	Finally Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750
