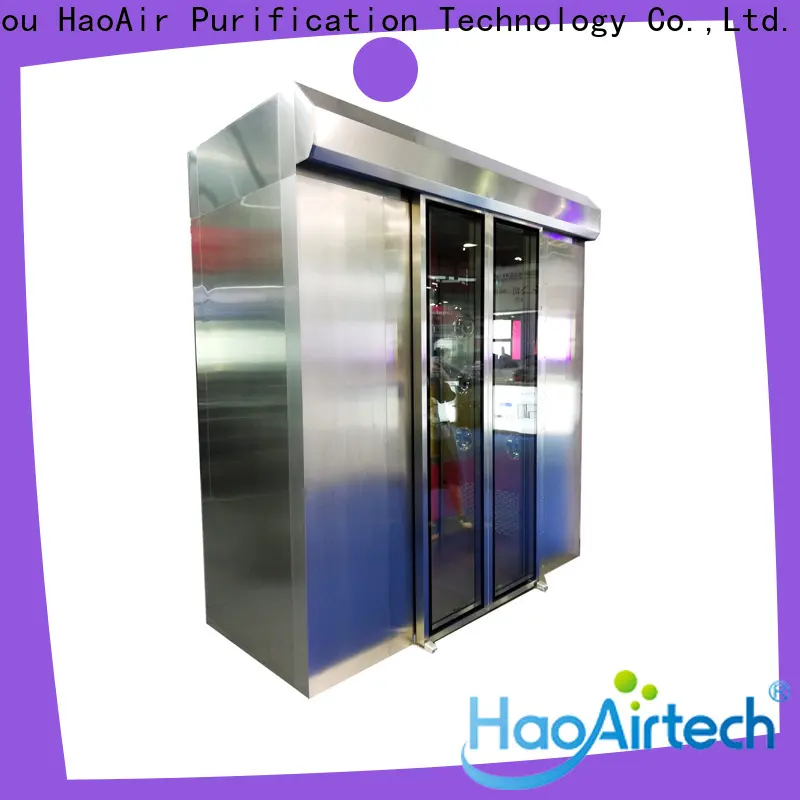

sus air shower clean room with top side air flow for oil refinery
1. Every HAOAIRTECH open air shower is guaranteed by a series of processes including raw material extraction, accurate and rigorous prototyping and regular tests on physical and chemical properties. The product comes with 1-2 years of warranty period
2. People do not have to worry about hygiene problems. It will not cause any disease that is caused by bacteria or fungal. It highly conforms to the dustless workshop management standard
3. The product has many excellent characteristics of long service life and stable performance. The product can maintain high air quality of the factory
4. We fully make use of the cutting edge technology to achieve high-quality product. The product can increase the rate of finished products
5. Every aspect of the product is excellent, including performance, durability, and practicality. It has low noise and high mobility
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 2000*2000*2180mm
Internal size: 1500*2000*1910mm
Sus nozzle: 32pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS2000P2 | HA-AS2000P3 | |
External size (mm) | 2000x2000x2200mm | 2000x3000x2200mm | |
Work zone (mm) | 1500x1930x2000mm | 1500x2930x2000mm | |
Air speed (m/s) | >25m/s | ||
Door material | Stainless steel frame with half glass or full glass | ||
Door control system | Auto sliding double door | ||
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | ||
Control system | 1: Control system with LED display for the shower time. | ||
The power of fan | 380V/50HZ/0.75KW(4 sets) | 380V/50HZ/0.75KW (6sets) | |
Nozzle in stain less steel | 32 pcs | 48pcs | |
Noise level(dB) | <75dB | ||
HEPA FILTER | Size(mm) | 630X630X80mm (4 sets) | 630X630X80mm(6 sets) |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | ||
Air velocity | 1000(m3/h) | ||
Initial resistance(pa) | <180pa | ||
Pre-filter | Size(mm) | 775x380x17 | |
Efficiency (%) | 75% @ 0.5um | ||
G3 | |||
resistance(pa) | <30Pa | ||
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 3kw | 4.5 kw | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Weigh | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Power indicator 5: Emergency switch 6： Sliding door 7: HEPA air filter (H13 99.995%@0.3um) 8:Fan 9: Per-filter 10: important door closer 11: purification light
Door opening method:
1：Wireless remote control switch 2: Microwave sensor automatically 3: Non-contact sensor Switch 4: Contact push button Switch
Auto –sliding door Air shower control system procedure:
From contaminated zone to Clean room area:
2: when the person or cargo inside of air shower, the door will be closed automatic according setting time.
3: When the person or cargo arrived the air shower sensor area, but door will be interlocking and start the self-clean system.(0-90s)
4: After the self –clean system finished working, the exit door will be open automatic.
5: The person and goods go out of the door, some seconds later the exit door closed automatic.
The air shower procedure will be back standby state.
From clean room area to contaminated :
2: when the person or cargo inside of air shower, the exit door will be closed automatic according setting time.
3:when the exit door closed , 10s later the entrance door will be open automatic ,
4: the person and cargo go out of the entrance door, the door will be closed within setting time.
/ Certificated:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
