We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

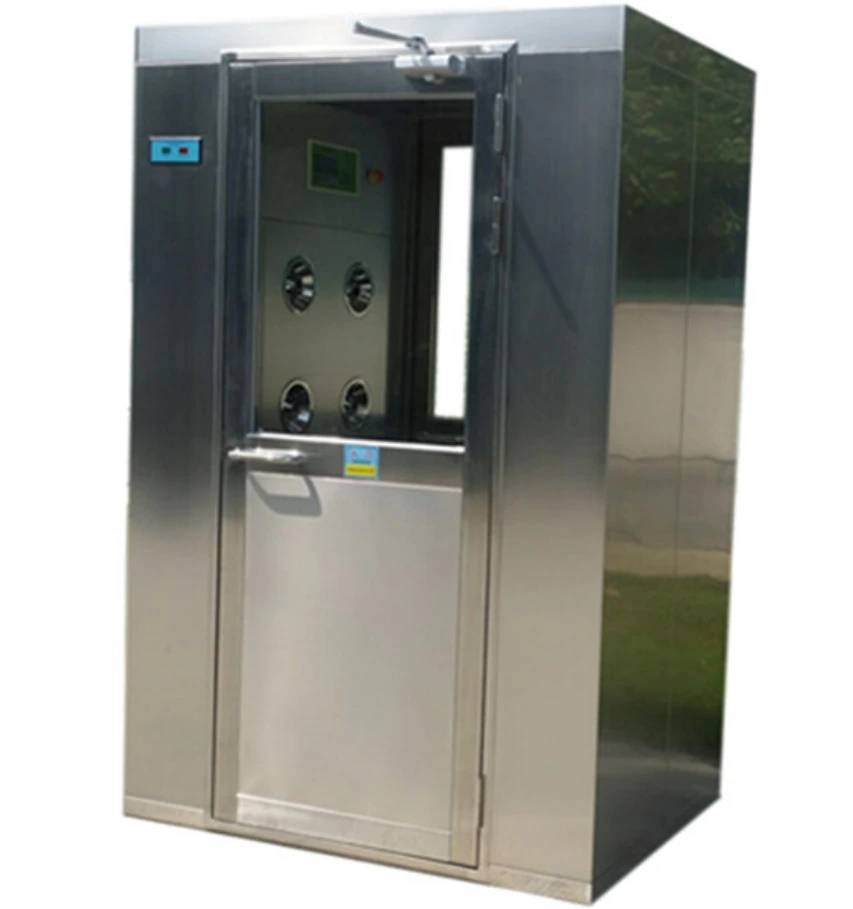

SUS304 Cleanroom Air Shower

Brand:

HAOAIRTECH

Model number:

HA-1300P1.5

Material:

stianless steel304 plate

OEM /ODM:

OEM/ODM

Certificated:

Start port:

GUANGZHOU

Delivery time:

7 Working days

MOQ:

1set

Country of Original:

china

Supply ability:

50set/per month

Payment term:

T/T IN advance, LC at sight ,

Application:

Food factroy Cleanroom/industry cleanroom

Inquiry

Write a Review

SUS304 Cleanroom Air Shower

1: Direct drive non-overloading paddle wheel blower

2: Open drip proof motor

3; Neoprene vibration isolators for blower

4: 99.99% @ .3 micron HEPA filter

5：White plastic adjustable air nozzles that deliver a minimum 5000 f.p.m. velocity

6：G3 pre-filters located at the bottom of the wall for easy access

7：Magnetic door interlocks 24DV with 600 pound holding force

8：Emergency stop station (shuts off blower and turns off locks)

9： Clear anodized aluminum frame doors with 1/4" clear tempered glass vision panel

10：Commercial duty door closers

11：Clear anodized door stops with seals

12：Drag sweep for bottom door seal

13：LED light fixture

14：Pre-wire control panel with non-fused disconnect switch, transformers, motor starter with

short circuit and overload protection and fuses and/or circuit breaker.

15：Available in straight, right angle, left, angle, u-shape and z-shape configurations

Cleanroom Air Shower Parameter :

SUS304 Cleanroom Air Shower
Model	HA-AS-1300/P1	HA-AS-1300/P1.5	HA-AS-1300/P2
Exterior Size LxWxH (mm)	1300x1000x2100	1300x1500x2100	1300x2000x2100
Interior Size LxWxH (mm)	800x930x1960	800x1430x1960	800x1930x1960
Users	1	2	2-3
Material	Available in 100% SUS304 Stainless Steel and/or High-Quality 1.2 mm Cold-Rolled Steel Plate
Air Shower Time	0-99 seconds
Jet Nozzles	12	18	24
Nozzle Diameter	30 mm
Air Velocity	> 25 m/s
Door Closer	Dorma (German) Door Closer
Electronic Lock	LCJ Electronic Lock
Filter Efficacy	≥99.995% of Particles ≥0.3μm
Filter Size LxWxH (mm)	595 ×595×80	595 ×595×80	595 ×595×80
No. of Filters	2	2	4
Power Source	380V/50Hz (Also Available in 220V and 110V)
Lighting	1 Recessed LED	2 Recessed LED	2 Recessed LED
Fan Power (# x Kw)	2 x 0.55	2 x 0.75	4 x 0.55
Weight (kg)	350	450	600

Application :

SUS304 Cleanroom Air Shower 2

SUS304 Cleanroom Air Shower 3

Our Shipment :

SUS304 Cleanroom Air Shower 4

GET IN TOUCH WITH Us

just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
