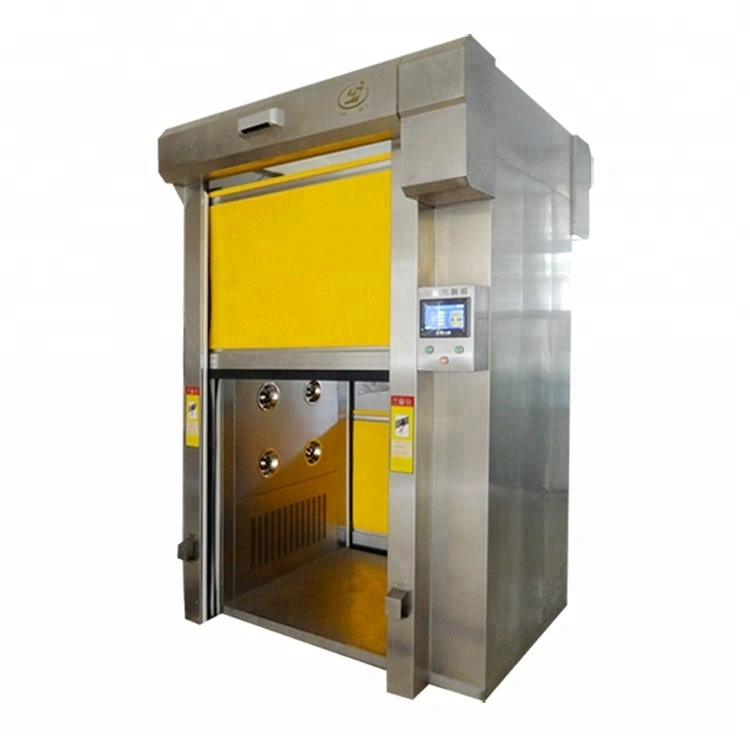

Coldrolled Steel with Baked Painting Fast-rolling Door Air Shower

 Introduction:

The fast rolling shutter door air shower can be produced with the maximum dimension of 6m in width and 14m in height. The opening and closing speed of the door ranges from 0.6 to 2.0m/s. The speed can be set when the product is installed. From the bottom to the top, the product only needs about 2 seconds. It is 20 times faster than the electric rolling gate. The elastic PVC base fabric gas seal is installed at the bottom of the product. It can link with various uneven grounds tightly. The gas seal is filled with cushioning material for enhancing the durability. The unique double-layer brush is adopted by the door post for better tightness.

Fast-rolling Door Air Shower General Features:

1.Photoelectric sensor, automatic blow.
2.Electronically interlocked with double stainless door.
3.Stainless nozzles.
4.Auto system.
5.With Auto, Stop, Manual, Emergency Stop function keys.
6.An Emergency Stop push button: will override the operating cycle to release the door locks immediately.
7. Custom sizes are possible.

Fast-rolling Door Air Shower Applications:

As clean room equipment,air shower installed in the clean room entrance and used to remove the dust on personnel or goods entering through it, Automatic Blowing Air Shower, which is composed of case, fan(s), filter(s), nozzles and electric control system, is photoelectrically controlled, electronically interlocked and automatic blowing.
The materials for case can be chosen from all cold rolled steel plate with powder coated, stainless steel inside and cold rolled steel plate with powder coated outside , and all stainless steel (SS201 or SS304; thickness: 1.0 mm or 1.2 mm).
The air shower time is adjustable from 1-99 seconds, compact and sound in structure. An air shower passage can be made up of several air showers.

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Fast-rolling Door Air Shower Specification:

Fast-rolling Door Air Shower Configuration:

Fast-rolling Door Air Shower Color Reference:
