We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

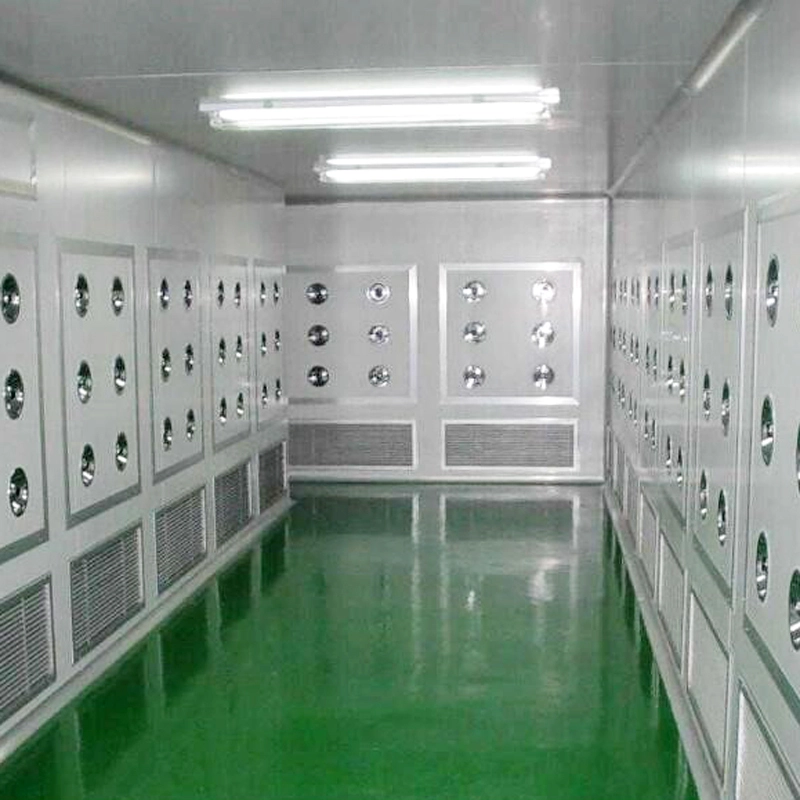

PLC control system Air Shower Tunnel for Large scale semiconductor factory 1
PLC control system Air Shower Tunnel for Large scale semiconductor factory 2
PLC control system Air Shower Tunnel for Large scale semiconductor factory 3
PLC control system Air Shower Tunnel for Large scale semiconductor factory 1
PLC control system Air Shower Tunnel for Large scale semiconductor factory 2
PLC control system Air Shower Tunnel for Large scale semiconductor factory 3

PLC control system Air Shower Tunnel for Large scale semiconductor factory

    oops...!

    no product data.

    Go to homepage



    Product Features
    1: Blowing way: 3 side (left, right and top)
    2: Air speed: more than 25m/s
    3:Air shower tunnel compact clean room HVAC system so that the tunnel keep the appropriate temperature and humidity in different season.
    4:Two type air shower control system:
    A: when all of person inside the air shower, the both side door will be electric Interlocking, the air shower tunnel will be start self-clean system both side.
    B: once one person was detect by sensor, each group the fan will be working 15s on sequence until the person walk out of the air shower tunnel.
    5:The air shower tunnel floor compact with sole cleaning machine so that control the clean room dust in strictly .
    PLC control system Air Shower Tunnel for Large scale semiconductor factory 4


    Introduce

    The air shower tunnel is the equipment of clean workshop and clean room supporting equipment. It is used to blow off the dust and particles on the surface of human body, carry off the small objects entering the clean area.
    At the same time, the air shower tunnel as one air brake that is used to prevent the unpurified air from entering the clean room area. It is an effective equipment for the purify human body and material and the prevention of air pollution in the clean room area.
    It is versatile and can be used with all clean rooms and clean buildings. The air shower channel is suitable for large cleaning area enterprises.


    PLC control system Air Shower Tunnel for Large scale semiconductor factory 5
    PLC control system Air Shower Tunnel for Large scale semiconductor factory 6



    / Specification



    T type Air Shower Tunnel

    PLC control system Air Shower Tunnel for Large scale semiconductor factory 7

    L Type Air Shower Tunnel

    PLC control system Air Shower Tunnel for Large scale semiconductor factory 8

    S Type Air Shower Tunnel

    PLC control system Air Shower Tunnel for Large scale semiconductor factory 9

    U Type Air Shower Tunnel

    PLC control system Air Shower Tunnel for Large scale semiconductor factory 10


    Big Z Type Air Shower tunnel engineering project in Argentina

    PLC control system Air Shower Tunnel for Large scale semiconductor factory 11



    Big U Type Air Shower tunnel engineering project in South America

    PLC control system Air Shower Tunnel for Large scale semiconductor factory 12




    / Product Details



    part.1
    Air shower Door
    PLC control system Air Shower Tunnel for Large scale semiconductor factory 13

    part.2
    Clean room Air shower ceiling
    PLC control system Air Shower Tunnel for Large scale semiconductor factory 14

    part.3
    Clean room Air shower floor
    PLC control system Air Shower Tunnel for Large scale semiconductor factory 15

    part.4
    Air Speed Test
    PLC control system Air Shower Tunnel for Large scale semiconductor factory 16



    / Certificated:

    PLC control system Air Shower Tunnel for Large scale semiconductor factory 17





    / Our Service


    PLC control system Air Shower Tunnel for Large scale semiconductor factory 18

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
