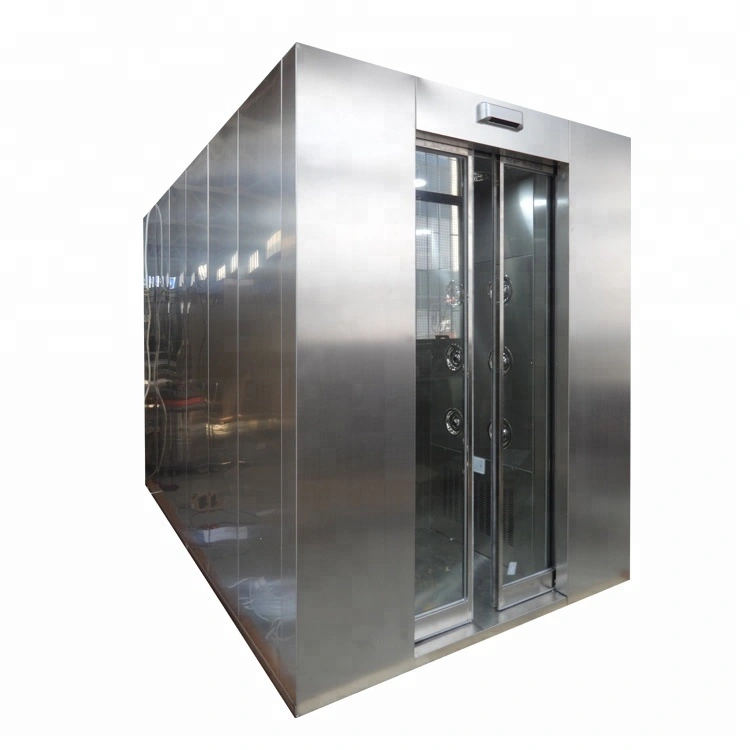

Cleanroom Cargo Air Shower With Automatic Shutter Door 1

Cleanroom Cargo Air Shower With Automatic Shutter Door 2

Cleanroom Cargo Air Shower With Automatic Shutter Door

Brand:

HAOAIR TECH

Model number:

HA-AS1950P Series

Material:

Coldrolled Steel with Baked Painting or Stainless steel 304/316

OEM /ODM:

OEM/ODM

Certificated:

CE,RoHS

Start port:

Guangzhou, Shenzhen, China port

Delivery time:

7-12 working days

MOQ:

1 unit

Country of Original:

China

Supply ability:

100-200 units

Payment term:

Western Union, T/T, L/C, D/P,D/A

Application:

Pharmacy Industry, Food Factory, Semi-conductor workshop

Inquiry

Write a Review

Introduction:
Cargo air shower is a necessary passage for goods entering the clean room.It can eliminate the pollution issue in very high effect.
The electronic interlocking double door in both side play an important role that prevent infective air into the clean room inside.
The high-tech intelligent cargo air shower system with voice prompts,auto voice reminding filtration air from the three direction nozzles for clean the particles or dust on pallets goods effectively and rapidly.

Cleanroom Cargo Air Shower General Features:
1.Microprocessor controlled
2.H13 HEPA filter
3.Two level filtration system (pre filter, HEPA filter)
4.Dual door opening options (infrared induction and inching switch)
5.Indicator light
6.Infrared sensor
7.Stainless steel door
8.Electronic door lock
9.Emergency stop switch
10.Custom sizes and configurations are also available

The air shower is approval by CE and RoHS certificate.
Customer’s design is available.

Cleanroom Cargo Air Shower Specification:

Cleanroom Cargo Air Shower HA-AS1950P Series
Model		HA-AS1950P1	HA-AS1950P2	HA-AS1950P3
Outer Si(mm) (WXDXH)		1950x1500x2180	1950x3000x2180	1950x4500x2180
Inner Size(mm)(WXDXH)		1450x1430x1910	1450x2930x1910	1450x4430x1910
Cargo per cycle		One Pallet	Two Pallets	Three Pallets
Air shower duration		Factory set at 15 seconds (0-99 seconds adjustable)
Material		Coldrolled Steel with Baked Painting or Stainless steel 304/316
Fan consumption		750WX2sets	750WX4sets	750WX6sets
Air flow of fan(m3/h)		1300m3/h
Fan run (r/min)		2800r/min
Nozzle in stain less steel		18 pcs	36 pcs	54 pcs
Wind speed(m/s)		>25m/s
Noise level(dB)		<75dB
LED Fluorescent Lamp		20wx1	20wx2	20wx3
HEPA Filter	Size(mm)	595X595X80mm(Mini-pleats HEPA filter)
	Efficiency	99.995%@0.3um
	Resistance	<180pa
Pre-filter	Size(mm)	785x385x21mm
	Efficiency	75% @ 5um
	Resistance	<30 Pa
Power supply		380V/50Hz

Clean Room Cargo Air Shower Configuration:

Cleanroom Cargo Air Shower With Automatic Shutter Door 3

Cargo Air Shower For Clean Room:

Cleanroom Cargo Air Shower With Automatic Shutter Door 4
