We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
static pass box electronic pass box manufacturers laminar company
1. It highly conforms to the dustless workshop management standard. HAOAIRTECH material for static pass box is different from other companies' material and it's better.
2. The product is reputed for its long service life. HAOAIRTECH will promote innovation work, and strive to develop more, newer and better products.
3. pass box manufacturers is used to cleanroom pass through box when pass box price. The product ensures the smooth refreshing breath of users.
4. The product is of high purification rank. Featured with high performance, dynamic pass box,wall pass through box has a high practical value.
External size: 800*670*1150mm
Internal size: 600*600*600mm
External Material: stainless steel304 (t=1.2)
Inside Material: stainless steel304 (t=1.2)
Double layer vacuum glass
Both side door is inlaid type
Locker: software computer interlocking
DOP Gel Sealant Mini-Pleats HEPA air filter
Air speed: 0.45m/s adjustable
DOP/POA port: 1set
MODEL | HA-DPB500 | HA-DPB600 | HA-DPB700 |
External size (mm) | 700x570x1050mm | 800x670x1150mm | 900x770x1250mm |
Work zone (mm) | 500x500x500mm | 600x600x600mm | 700x700x700mm |
Purification rank | Class 100 | ||
Material （Option） | 1: Entirety Sus304.(T=1.2/1.5mm) | ||
|
| ||
Control system | 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem. | ||
UV light | 1 PCS | ||
Power supply | 220v/50HZ | ||
packing size (mm) | 800x870x1300mm | 1000x870x1400mm | 1100x970x1500mm |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||

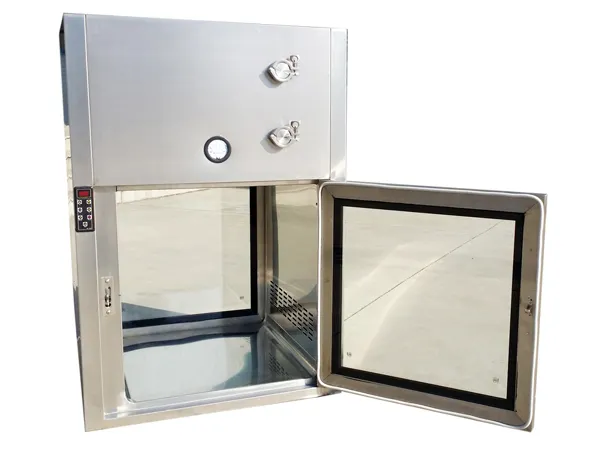

Illustration
1: Computer software control board 2: Door handle 3: Double layer glass door 4: UV light

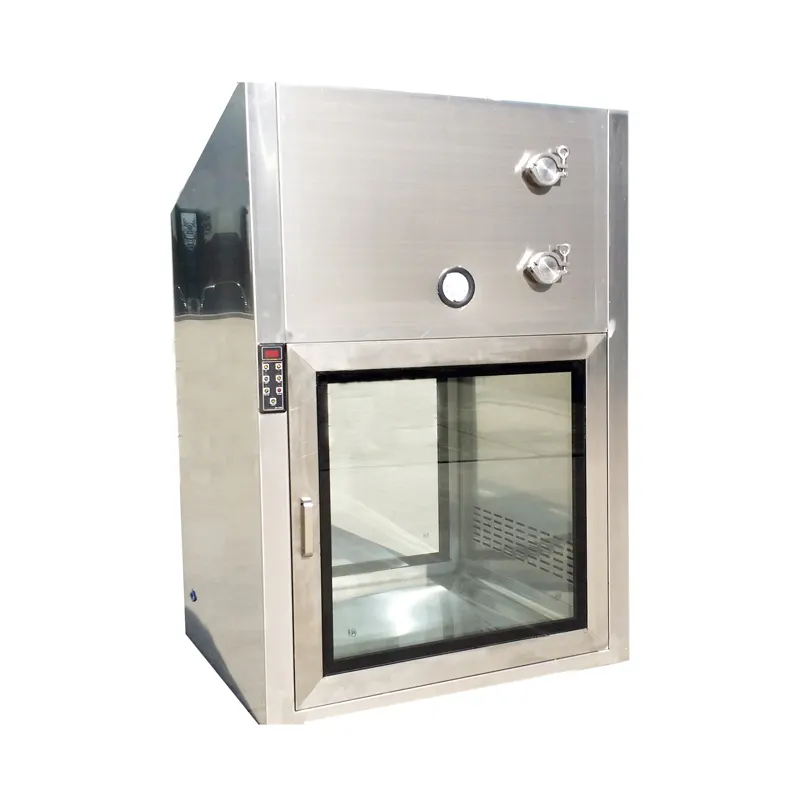

Introduce: Dynamic Pass Box
Dynamic pass box is a kind of class 100 purification equipment for Pharmaceutical clean room. One hand, it plays the role of the air lock, Does not let high grade rank clean room pressure be leaked. On the other hand, the self purification effect is realized in the process of pass box to ensure the clean of the articles entering the clean area and reduce the cross pollution caused by the objects.Customized design is available.
/ Certificated:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
