We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

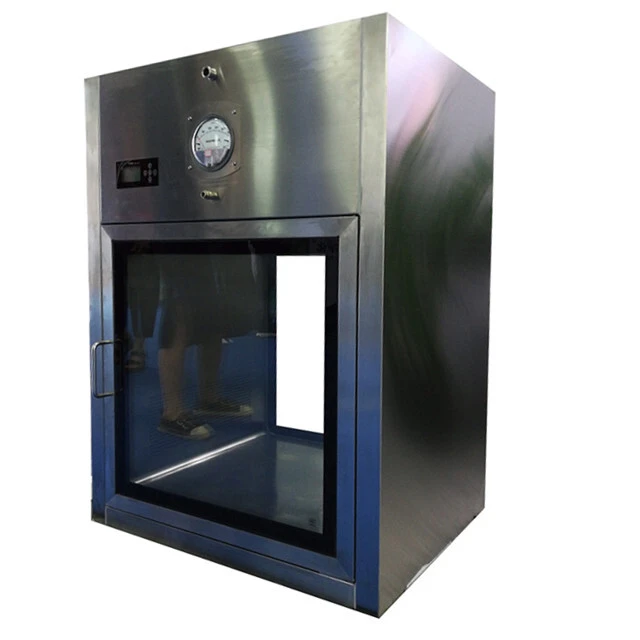

Clean Room Dynamic Pass Boxes 1
Clean Room Dynamic Pass Boxes 1

Clean Room Dynamic Pass Boxes

    oops...!

    no product data.

    Go to homepage

    TECHNICAL SPECIFICATIONS


    • Self-supporting structure made of stainless steel AISI 304 Scotch Brite finished

    •  electrically interlocked doors with proper gaskets

    •  traffic light for door status

    •  control panel

    • differential pressure gauge

    • HEPA filter grade F-14

    • Motor fan

    • Working area classification ISO 5



     Product Characteristic :



     Clean Room Dynamic Pass Boxes are designed in conformation to the international standards and are used for transferring

    the material from and into the classified clean room without contaminating the air of clean room.

    In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.

    Clean Room Dynamic Pass Boxes 2


    Products Parameter


    Air cleanliness :ISO Class 5 / Class 100 / M 3.5 AREA
    Air Velocities :0.45 ± 0.05 mps (90 ± 20 FPM)
    Air Flow :Horizontal / Vertical
    Noise Level :Less than 65 dB
    Vibration Level :Minimum
    POWER SUPPLY :230V AC, 1-Ø, 50HZ
    MOC :GI Powder Coated / SS-304 / SS-316 / Combination
    Door :Swing Type Double Door (Double skinned) with View Panel with SS Hinges & ‘D’ Handle

    Internal Coving for easy cleaning

    Two Stage filtration

    EU7 - Intermediate Filter (95% down to 3 micron)

    EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron)

    Fluorescent Lights (interlocked with Door)

    UV Light (interlocked with Door)
    Differential Pressure Gauges :01 No. (HEPA Filter)
    Door Opening With Solid State Electronic Inter Locking MechanismWhen both door closed; both are elec. Magnet locked; For open press touch screen to release the door

    At A Time Only One Door Opened

    Audio / Visual Indication for material is kept inside the pass box

    In close condition of both door : UV Light will be on,

    When open any one door : UV will off and FL will on
    DOP Port
    DQ, IQ, OQ, PQ Documentation



      Clean Room Dynamic Pass Boxes 3
