We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

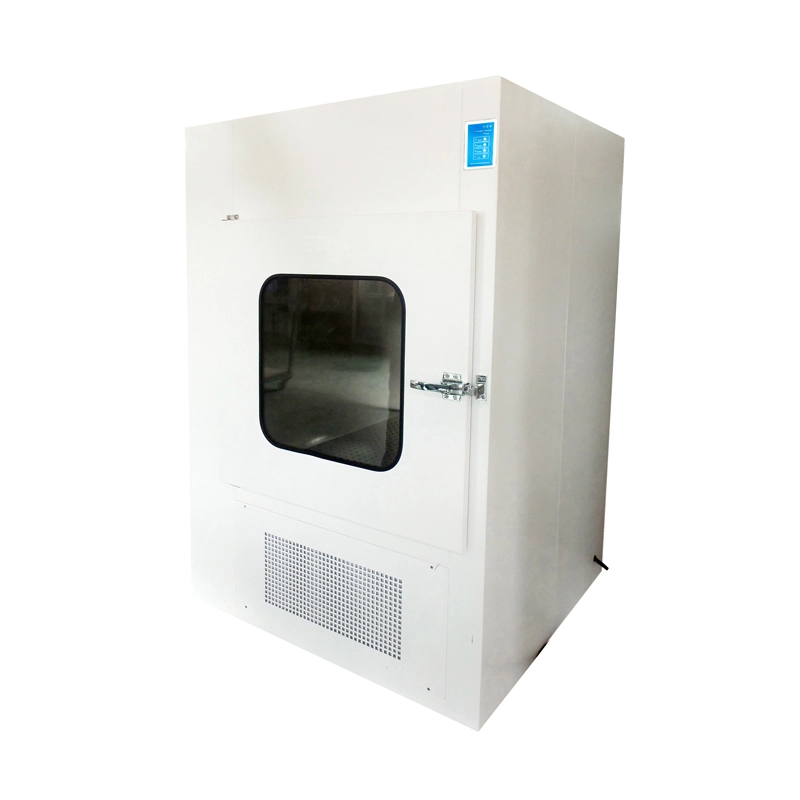

Electronic interlocking Air Shower Pass Box for  electronics factory 1
Electronic interlocking Air Shower Pass Box for  electronics factory 1

Electronic interlocking Air Shower Pass Box for electronics factory

    oops...!

    no product data.

    Go to homepage



    Product Features
    External size: 800*670*1150mm
    Internal size: 600*600*600mm
    External Material: steel with power coated (t=1.0)
    Inside Material: stainless steel304 (t=1.0)
    Locker: Electric interlocking
    Mini-Pleats HEPA air filter
    Air speed: 22-25m/s
    Electronic interlocking Air Shower Pass Box for  electronics factory 2


    / Products Parameter


    MODEL

      HA-APB500

    HA-APB600

    HA-APB700

    External size (mm)
         (W*D*H)

    850x500x1350mm

    950x600x1450mm

    1090x750x1600mm

    Work zone (mm)
         (W*D*H)

    500x500x500mm

    600x600x600mm

    750x750x750mm

    Nozzle

    4 PCS

    4PCS

    6 PCS

    Air speed

                     18-25m/s

    Material(Option)

    1: Entirety Sus304.(T=1.2/1.0mm)
    2: Entirety sus201. (T=1.2/1.0mm)
    3:External is steel with power coated,    Internal is SUS304(T=1.2/1.0mm)
    4: External is steel with power coated.    Internal is SUS201(T=1.2/1.0mm)

     Per-filter

    525x275x17mm

    560x275x17mm

    560x275x17mm

                         G3

    HEPA filter

    484x484x69mm

    630x630x69mm

    630x630x69mm

    99.99%@0.3um H13

    Optional accessories

    1: UV light. 2: Interphone  3:Differential pressure gauge  4: Roller

    Power supply

                      0.75KW  380V/50HZ

    packing size    (mm)

    1050x780x1600mm

    1100x880x1700mm

    1240x1030x1850mm

    Packing    material

    Standard Export Poly wood Packing(Fumigant free material)



    / Specification


    Illustration

    1:  power button 2: HEPA Filter   3: Handle   4: Perfilter  5: Fan


    Electronic interlocking Air Shower Pass Box for  electronics factory 3



    / Product Details



    part.1
    Air Shower Pass Box
    Electronic interlocking Air Shower Pass Box for  electronics factory 4

    part.2
    Air shower pass box Bottom
    Electronic interlocking Air Shower Pass Box for  electronics factory 5

    part.3
    Air Shower Pass Box Top Nozzle
    Electronic interlocking Air Shower Pass Box for  electronics factory 6


    Introduce

    Pass box with air shower is a kind of assistant equipment for clean room. Mainly be used in passing the small articles between clean room and clean room, unclean room and clean room, which reduce the times of opening door and minimize the pollution extent. It can stop the gas enter the clean room. It also can ensure the goods is clean into in the clean room and reduce the pollution from outside. The blowing time is adjustable with 1 minute , it can save the energy for pass box with air shower. Customized design is available.



    / Certificated

    Electronic interlocking Air Shower Pass Box for  electronics factory 7






    / Our Service


    Electronic interlocking Air Shower Pass Box for  electronics factory 8

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
