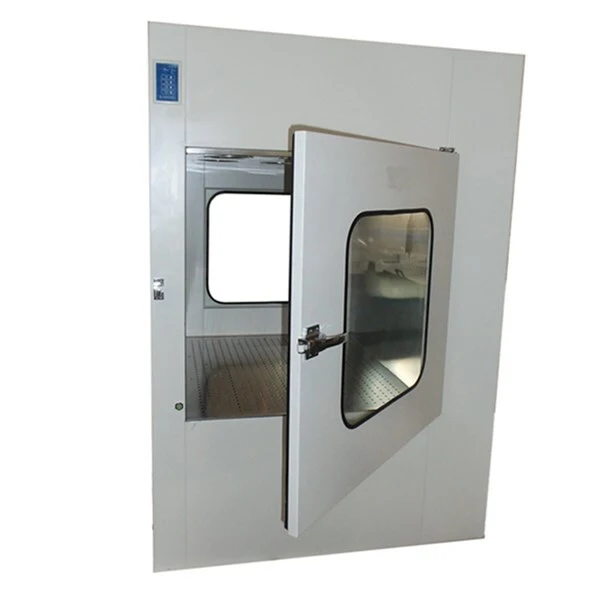

750W Air Shower Pass Box Embedded Lamps With Arc Design GMP Standard 1
750W Air Shower Pass Box Embedded Lamps With Arc Design GMP Standard 2
750W Air Shower Pass Box Embedded Lamps With Arc Design GMP Standard 1
750W Air Shower Pass Box Embedded Lamps With Arc Design GMP Standard 2

750W Air Shower Pass Box Embedded Lamps With Arc Design GMP Standard

    oops...!

    no product data.

    Go to homepage

    750W Air Shower Pass Box Embedded Lamps With Arc Design GMP Standard


    Introduction


    The air shower pass box is designed according to the type of the clean room air shower .

    And it is also called purification transfer box, air-shower transfer cabinet or air-shower pass box.

    In order to reduce the large amount of dust particles caused by goods entering and leaving ,the fan quickly blows the air out through the Initial and High Efficiency Filters and turns it into clean air.

    The clean air is sprayed by stainless steel nozzle, and the airflow velocity is over 20m/s. It is possible to remove the dust particles attached to the surface of the object quickly and effectively.



    Characteristics


    1. Adopt a circular corner that is more suitable for the clean room principle.

    2. The outer wall is sprayed with high quality cold rolled steel plate.

    3. Stainless steel plate is used on the working table of short distance pass box , which is smooth, and wear-resistant.

    4. The working table of long-distance pass box is equipped with powerless drum, which makes the delivery of goods easy and convenient.

    5. Both side doors are equipped with mechanical or electronic interlocking devices to ensure that both side doors cannot be opened at the same time.

    6.The air velocity of the tuyere outlet is over 20 m/s.

    7.High efficiency filter with partition is adopted, the filtration efficiency is 99.99%, ensuring the purification level.

    8.Using EVA sealing material, high sealing performance.

    9. Imported electronic components, reliable performance.



    Products Parameter:


    Customer's design is available.


    MODEL

    HA-APB500

    HA-APB600

    HA-APB700

    External size (mm)

    (W*D*H)

    850x500x1350mm

    950x600x1450mm

    1090x750x1600mm

    Work zone (mm)

    (W*D*H)

    500x500x500mm

    600x600x600mm

    750x750x750mm

    Nozzle

    4 PCS

    4PCS

    6 PCS

    Air speed

    18-25m/s

    Material

    (Option)

    1: Entirety Sus304.(T=1.2/1.0mm)

    2: Entirety sus201. (T=1.2/1.0mm)

    3:External is steel with power coated, Internal is SUS304(T=1.2/1.0mm)

    4: External is steel with power coated. Internal is SUS201(T=1.2/1.0mm)

    Per-filter

    525x275x17mm

    560x275x17mm

    560x275x17mm

    G3

    HEPA filter

    484x484x69mm

    630x630x69mm

    630x630x69mm

    99.99%@0.3um H13

    Optional accessories

    1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller

    Power supply

    0.75KW 380V/50HZ

    packing size (mm)

    1050x780x1600mm

    1100x880x1700mm

    1240x1030x1850mm

    Packing material

    Standard Export Poly wood Packing(Fumigant free material)
