We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

microcomputer  interlocking  control dynamic pass box with laminar air flow 1
microcomputer  interlocking  control dynamic pass box with laminar air flow 1

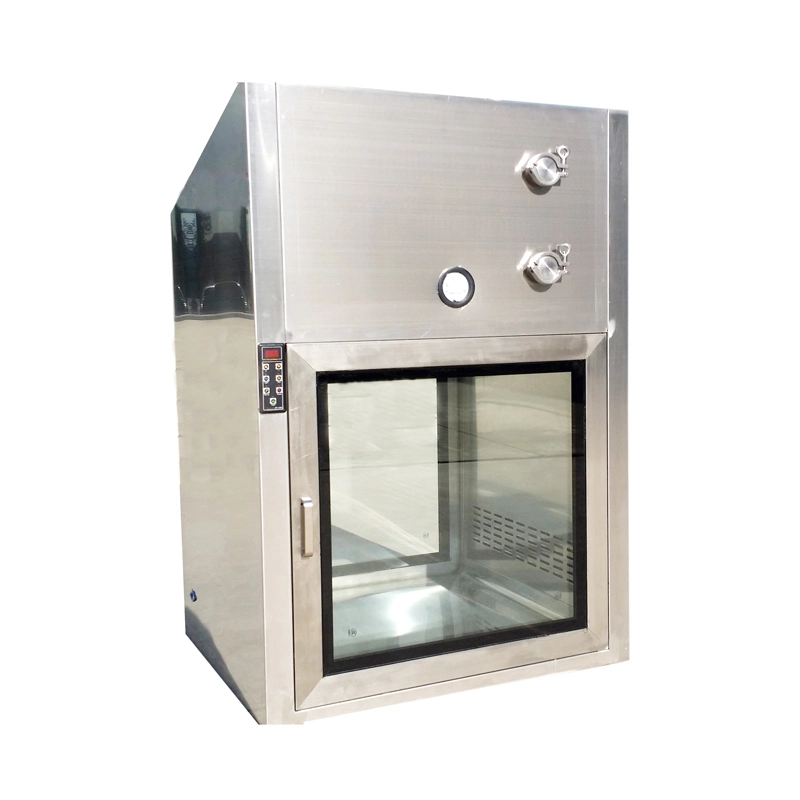

microcomputer interlocking control dynamic pass box with laminar air flow

    oops...!

    no product data.

    Go to homepage



    Product Features
    Pass box inside bottom corner is round shape so that there is any dust accumulation
    External size: 800*670*1150mm
    Internal size: 600*600*600mm
    External Material: stainless steel304 (t=1.2)
    Inside Material: stainless steel304 (t=1.2)
    Double layer vacuum glass
    Both side door is inlaid type
    Locker: software computer interlocking
    DOP Gel Sealant Mini-Pleats HEPA air filter
    Air speed: 0.45m/s adjustable
    DOP/POA port: 1set
    microcomputer  interlocking  control dynamic pass box with laminar air flow 2


    / Products Parameter


    MODEL

      HA-DPB500

    HA-DPB600

    HA-DPB700

    External size (mm)
         (W*D*H)

    700x570x1050mm

    800x670x1150mm

    900x770x1250mm

    Work zone (mm)
         (W*D*H)

    500x500x500mm

    600x600x600mm

    700x700x700mm

    Purification rank

    Class 100

    Material (Option)

    1: Entirety Sus304.(T=1.2/1.5mm)
    2: Entirety sus201. (T=1.2/1.5mm)
    3:External is steel with power coated,    Internal is SUS304(T=1.2/1.5mm)
    4: External is steel with power coated.    Internal is SUS201(T=1.2/1.5mm)





    Control system

    1: Gel Sealant mini-pleats HEPA air    filter so that pass the DOP test without any problem.
    2: Pass Box inside bottom corner is round    shape without any dust
    accumulation .
    3: Double layer vacuum glass have very    good appearance
    4: Software computer interlocking door    with long time using life
    5: Air speed is    0.45m/s adjustable

    UV light

                        1 PCS

    Power supply

                       220v/50HZ

    packing size    (mm)

    800x870x1300mm

    1000x870x1400mm

    1100x970x1500mm

    Packing    material

    Standard Export Poly wood Packing(Fumigant free material)



    / Specification


    Illustration

    1: Computer software control board 2: Door handle 3: Double layer glass door 4: UV light


    microcomputer  interlocking  control dynamic pass box with laminar air flow 3



    / Product Details



    part.1
    Pass Box inside corner
    microcomputer  interlocking  control dynamic pass box with laminar air flow 4

    part.2
    Dynamic Pass Box
    microcomputer  interlocking  control dynamic pass box with laminar air flow 5

    part.3
    Pass Box outside corner
    microcomputer  interlocking  control dynamic pass box with laminar air flow 6


    Introduce:  Dynamic Pass Box

    Dynamic pass box is a kind of class 100 purification equipment for Pharmaceutical clean room. One hand, it plays the role of the air lock, Does not let high grade rank clean room pressure be leaked. On the other hand, the self purification effect is realized in the process of pass box to ensure the clean of the articles entering the clean area and reduce the cross pollution caused by the objects.Customized design is available.



    / Certificated:

    microcomputer  interlocking  control dynamic pass box with laminar air flow 7





    / Our Service


    microcomputer  interlocking  control dynamic pass box with laminar air flow 8

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
