We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

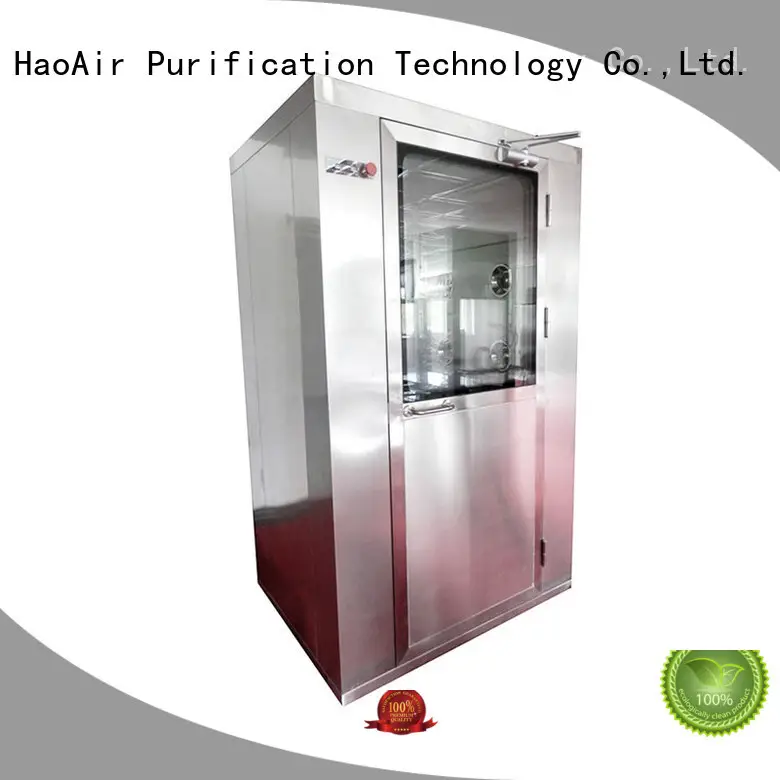

Stainless steel high efficiency cleanroom air shower with three side blowing
- HaoAir answers all kinds of customer's questions with patience and provides valuable services, so that customers can feel respected and caring.
1. During the design stage of HAOAIRTECH automatic air shower, many design considerations have been taken into. These factors include space availability and functional layout.
2. Multiple tests have been conducted in every production stage to ensure the consistent quality of the product.
3. The product has good stability and reliability and long service life.
4. With so many advantages, many customers repeat purchases, showing the huge market potential of the product.
Inside Material: stainless steel304 (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side
MODEL | HA-AS1300P1 | HA-AS1300P2 | HA-AS1300P3 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
Air velocity | 1000(m3/h) | |||
Initial resistance(pa) | <180pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control Board 2: Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Door, 10: Fan 11: Door Closer 12: purification light
Application
Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service:
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. The HAOAIRTECH brand is now more professional than many other SMEs in China.
2. HAOAIRTECH accomplishes great achievement the high quality of the air shower clean room .
3. We’re constantly striving to improve the products we supply, the services we deliver and the positive impact we make. Our mission is not just to succeed in this market. We aim to lead it towards a more ethical future. Get info! We think sustainability is of great importance. Through our investments in sectors such as water supply, wastewater treatment systems, and sustainable energy, we make a real difference to the environment. Get info! Our company has made great efforts for environmental protection. All of our production processes are strictly controlled and inspected to meet the relevant environmental regulations. Get info! Our company’s accumulated abundant experience gives us a clear vision to help clients navigate their futures. By using advanced production technologies and mastering the market trends, we are confident to offer customers the best product solutions.
1. automatic smooth sliding door
Smooth sliding doors can be configured with an emergency push device or a standby battery system (which can be selected)
2. emergency open device
The operator is equipped with an emergency push component, when there is an emergency or need to pass a large object can be pushed away by the human being in any permitted position
3. open features
When the door leafs completely open and overlap, the opening width is almost two times as much as the clearance width
4.automatic emergency opening
When there is a power failure, equipped with battery back-up system can automatically open the door
Factory testing (all the sets you ordered):
