We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
replaceable ulpa filter with dop port for air cleaner
- We promise choosing HaoAirtech is equal to choosing quality and efficient services.
1. HAOAIRTECH whole house hepa filter is carefully manufactured after the design is confirmed. The cutting machine will make it standard according to the data of the design structure and the design diagram.
2. The product does not retain any odor. Its ventilated design ensures the maximum airflow to remove any smell in the feet.
3. It features ergonomic comfort. Movements such as flexion, extension, and abduction are important in the developing phase of this product.
4. This product is used by more and more people and has broad application prospects.

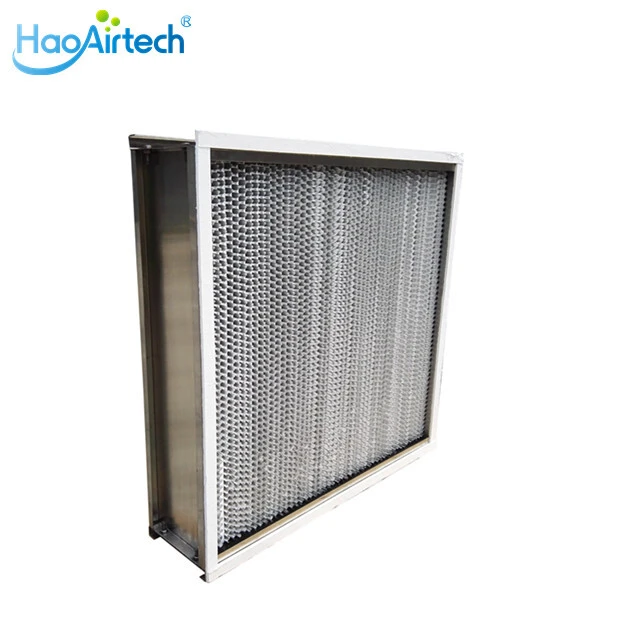

absolute high temp hEPA filter
Specifications:
Application: Protection for clean processes at high temperature
Frame: Reinforced stainless steel
Media: Glass Fiber
Max Temperature: 350ºC
Relative Humidity: 100%
Separator: Aluminium
Gasket : Glass fiber
Sealant: Ceramic
Max Final Pressure Drop: 500Pa
Comment:
Please note installation and assembly instructions! Due to the different thermal expansion
efficient of the individual filter components the ceramic potting may form cracks during
the tempering process. At operating temperature (350 ºC) these filters have an overall efficiency
of 99,97% at 0,3 μm, leackages are possible.
Products Parameter：
Dimension (mm) (W*H*D) | Rate Air Flow (m3/h) | Media Area (m2) | Dust Holding (g) | Rate primary Resistance (Pa) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
H12<200Pa H13 :<210Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6.0 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
Characteristics:
The only high-temperature HEPA filter that can comply with the most stringent FDA GMP requirements.
Pretreated, and prequalified, during the manufacturing process, with an exclusive heat preparation cycle (572º F, 300º C).

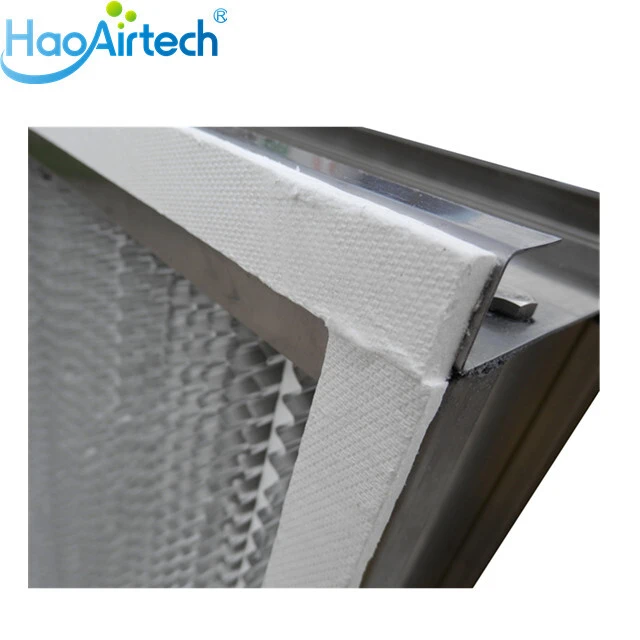

Stainless steel face grid is installed on both the air entering and air exiting sides of the filter to ensure protection of the media pack and add to the filter pack’s structural integrity.
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a company specializing in the production of whole house hepa filter . We have accumulated many years of experience in our production.
2. Our ulpa filter is easily operated and need no additional tools.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will assume more social responsibility for the country, provide customers with higher value air filter hepa and services. Get quote! Guangzhou HaoAir Purification Technology Co.,Ltd. will offer suggestions and feasible solutions to increase productivity for our customers. Get quote! hepa filter h12 being the eternal pursuit has always been the core tenet for HAOAIRTECH. Get quote!
