We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

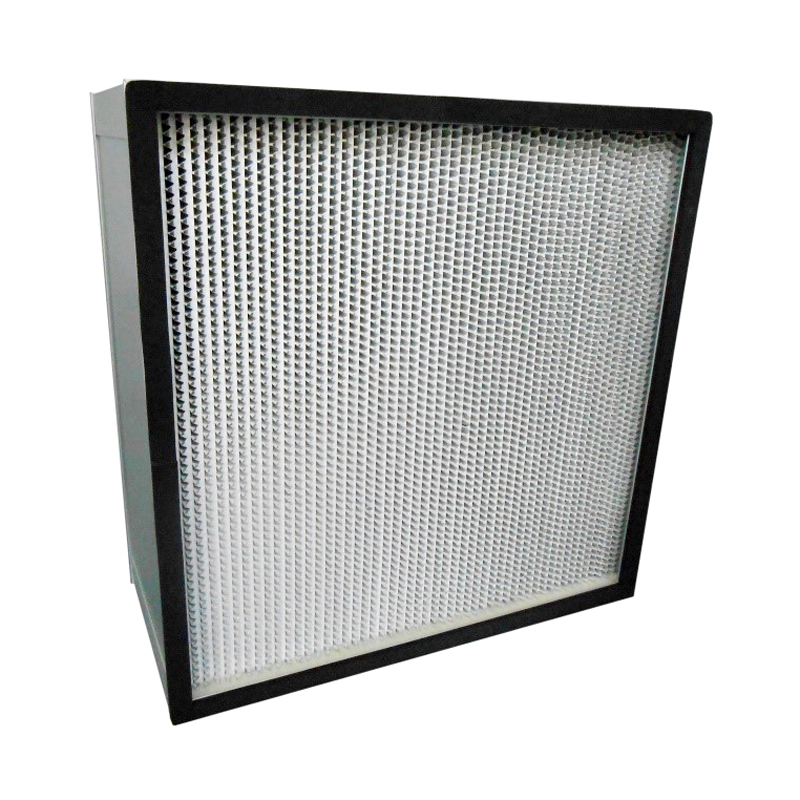

Absolute HEPA Air Filter with AL clapboard
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Absolute Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary Resistance(Pa) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 | ||
610X915X120 | 1050 | 10.6 | 560 | ||
610X1220X120 | 1400 | 14.1 | 740 | ||
484X484X150 | 600 | 6 | 320 | ||
610X610X150 | 1000 | 9.7 | 510 | ||
610X915X150 | 1500 | 14.5 | 770 | ||
610X1220X150 | 2000 | 19.3 | 1020 | ||
484X484X220 | 1000 | 9.8 | 600 | ||
610X610X220 | 1600 | 15.8 | 920 | ||
610X915X220 | 2300 | 23.7 | 1340 | ||
610X1220X220 | 3000 | 31.6 | 1750 |
