We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

non standard portable clean room with ffu online 1
non standard portable clean room with ffu online 2
non standard portable clean room with ffu online 3
non standard portable clean room with ffu online 1
non standard portable clean room with ffu online 2
non standard portable clean room with ffu online 3

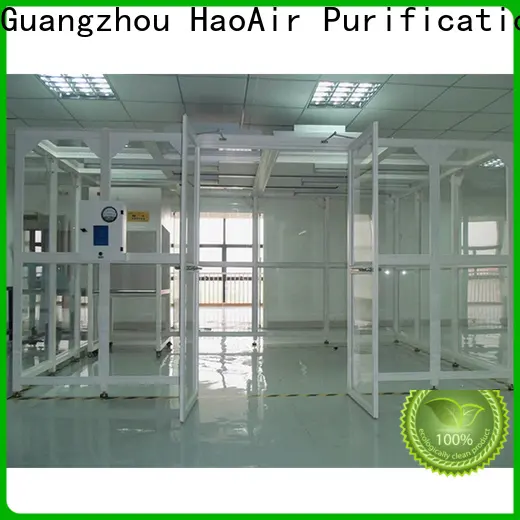

non standard portable clean room with ffu online

Brand:
HAOAIRTECH
Model number:
HA-MCR
Material:
Steel with powder coated 50x50mm
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
Huangpu ,Guangzhou
Delivery time:
10 working days
MOQ:
1sets
Country of Original:
China
Supply ability:
100Squre/ month
Payment term:
T/T IN advance, 100% LC at sight
Application:
Clean room
Inquiry
Product Name
Laminar Flow Booth
Other Name
Clean booth
Guarantee Time
12 month
Purificaiton Rank
class 1000
Dimension
3000x3000x2590mm
Power Supplier
220V/ 50 or 60HZ
Company Advantages
1. The testing for HAOAIRTECH clean shed includes medical materials reliability testing and evaluation, biocompatibility testing, durability testing, and chemical exposure testing. The product prevents airborne particles and microbes from entrance
2. Over the years, the product continues to upgrade and get the praise of the majority of users. The product comes with 1-2 years of warranty period
3. The product poses no risks. The corners of the product are processed to be smooth, which can greatly reduce the hurt. It is certified by SGS corporation and reaches RoHS standard


non standard portable clean room with ffu online 4

Applications:

Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy



Operating Features:


1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.



Product Specification:

MODELHA-LFB2000HA-LFB3000HA-LFB4000HA-LFB5000

Ex size (mm)

(W*D*H)

2000X2000X25963000X3000X25964000X4000X25965000X5000X2596
In size (mm)1900x1900x22052900x2900x22053900x3900x22054900x4900x2205
Purification rankClass10-300,000(FS209E USA)
HEPA filterEfficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
Pre-filterEfficiency : 85% @ 5um
Control systemPC control system / promised speed by control box
Pressure GaugeAmerican Dywer pressure
Noise<50-55 dB (test point distance is 1m)

Air velocity

(m3/h)

0.2-0.5m/s Adjustable (test point distance is 30cm)
Frame materialstainless steel/steel with power coated/Cast aluminum profile
Wall frameTempered glass / PVC anti-static curtain (option)
FanEBM Fan /Taiwan fan/ Domestic fan (option)
Power supplerAC110/220v 50HZ/60HZ


Basic Info:

Product NameSoftwall cleanroom/Softwall Modular Cleanrooms/Soft Wall Cleanroom
BrandOEM/ODM
MaterialSUS304,SUS201,SS304, Cold rolled plate
SizeCustomized
MOQ1 SET
Delivery Time7-15 working days
Shipping PortGuangzhou, Shenzhen, Shanghai
Warranty2 years
PackingPolywood packing
PaymentT/T,L/C, West Union, D/P, Cash

non standard portable clean room with ffu online 5


Company Features
1. With a heritage of excellence for years, Guangzhou HaoAir Purification Technology Co.,Ltd. has a sound reputation for designing and manufacturing high-quality clean shed . Guangzhou HaoAir Purification Technology Co.,Ltd. values technological innovation as the cornerstone of its core competitiveness and sustainability.
2. The research and development of each portable clean room is based on the strict quality policy.
3. It turns out to be effective that Guangzhou HaoAir Purification Technology Co.,Ltd. has been putting a lot of investment into producing cleanroom cleaning supplies with great performance. The company strives to operate in accordance with sound ethical business principles with partners and clients. We resolutely refuse any vicious business competition. Get an offer!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
