We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

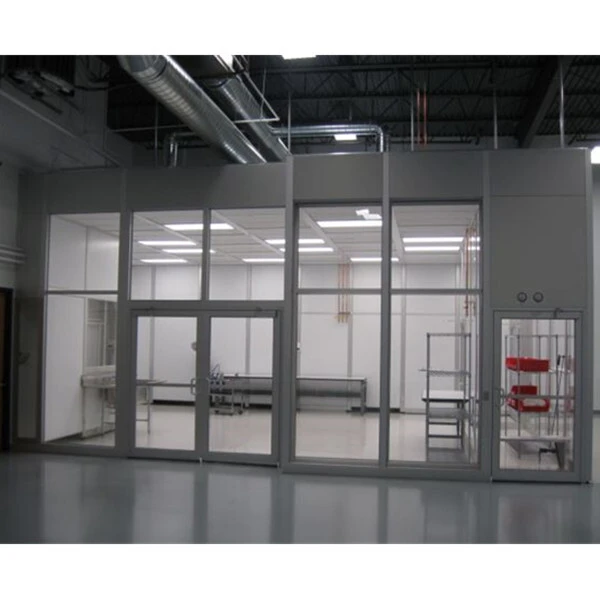

Prefabricated Modular Cleanroom 1
Prefabricated Modular Cleanroom 1

Prefabricated Modular Cleanroom

    oops...!

    no product data.

    Go to homepage
    Product Name
    Modular Cleanroom
    Other Name
    Prefabricated cleanroom
    Guarantee Time
    12 months
    Purificaiton Rank
    ISO7/ISO8
    Dimension
    customize
    Power Supplier
    220V/50HZ OR 60HZ

    Prefabricated Modular Cleanroom


    Products Parameter:

    Item

    Prefabricated modular cleanroom

    Purification Rank

    Class 100 to class 100.000

    Dimension L*W*H

    According client request

    Fan Filter Unit

    Dimension

    2x2,2x4,4x4 optional

    Structural Material

    Stainless steel, aluminum alloy, AI-Zn plate

    Power Supply

    220V/50HZ AC

    Air Filter

    Mini-pleats HEPA /ULPA Air filter

    Frame Material

    Aluminum alloy/stainless steel201/304

    Wall Material

    Acrylic /sandwich panel/anti-static acrylic

    Ceiling

    Aluminium –plastic panel , sandwich panel

    Air Conditioner

    Constant temperature air conditioning
    Or Constant temperature and humidity air conditioning

    Lighting

    LED light or T5 (Optional )

    Air Shower

    Optional

    Pass Box

    Optional

    Air Flow Floor

    Optional


    Draw:



    Detail:

    Prefabricated Modular Cleanroom Material List :

    Frame Material:

    A: Stainless steel 304 tube : it can resist corrosion and have strong support

    B: Steel with power coated tube in 50x50mm

    C: aluminum alloy : easy assembly , standard accessories .


    Ceiling:

    A:Aluminium-plastic material is light at weight, easy to install.

    B:Sandwich board ceiling in ivory white color have excellent thermal insulation property,

    More high requirement for large are temperature and humidity so it is best choice for cleanroom


    Fan Filter Unit:

    Adopted excellent energy –saving EC Centrifugal fan with lower noise and less energy consumption.(EBM Brand )


    Wall:

    A: The anti-static acrylic sheet can may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber.

    B: Organic glass : light weight, easy install,

    C: Tempered glass : it have good performance in view

    D: Vacuum Double Layer Glass: elegant appearance and high efficient thermal insulation effect .


    Door:

    A: Single Door: steel with power coated frame with full organic glass

    B: Double Door: Steel with power coated frame or stainless steel304 frame with full tempered glass .

    C: Slide Door: Sandwich panel with manual slide door.


    Control System:

    We can adopted the PLC control system for control the fan filter unit .this can catch the wind speed, differential pressure, temperature and humidity of Prefabricated modular cleanroom


    Application:

    E-Cigarette , LCM, CMOS Camera Module , Touch play , Optical module ,Film ,Biological Pharmacy, Packing Food .
