Modular Cleanroom For Pharmaceutical Industry
Modular Cleanroom For Pharmaceutical Industry

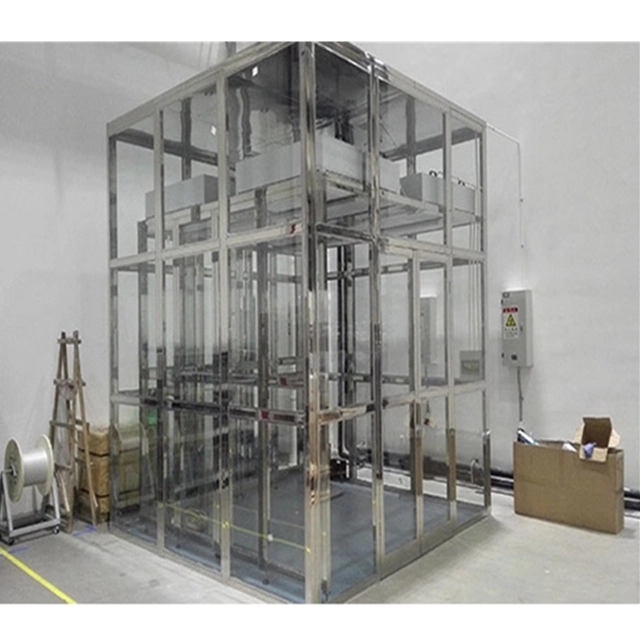

The Modular Cleanroom System is a fully operative cleanroom as a room-in-a-room system with a vertical unidirectional or turbulent airflow.
The system can be manufactured as open- or closed-loop construction.
Three different versions are available allowing flexibility for changing customer requirements:
ceiling-suspended, standing-firm with walls or mobile. The system itself can be equipped with the following options:
Illumination
AC or DC motor fans
AMC filters
Heat exchangers
The modular cleanroom system can achieve cleanroom classes 3-to-8 according to DIN EN ISO 14644-1.
Parameter
| Model | HA-1500 | HA-2000 | HA-3000 | HA-5000 |
| External Size (W*D*H) | 1500*2000*2530mm | 2000*3000*2530mm | 3000*4000*2530mm | 5000*5000*2530mm |
| HEPA Filters | 99.999% efficiency at 0.3 um | |||
| Consumption | 500W | 800W | 1000W | 1600W |
| FFU Nos. | 4 pcs | 6 pcs | 12 pcs | 25 pcs |
| Clean Level | ISO 5 (Class 100), Class A | |||
| Control System | control box | |||
| Rectangular Tube Material | SUS 304 material frame | |||
| Wall Material | Anti-static dustproof curtain | |||
| Blower | Built-in centrifugal blower; speed adjustable | |||
| UV Lamp | Emission of 253.7nanometers, with UV timer | |||
| Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
| Noise | ≤58db | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
| Gross Weight | 390Kg | 670Kg | 1100Kg | 2900Kg |
| Package Size (W*D*H) | 2110*930*920mm 2260*660*500mm | 3080*980*1260mm 3080*660*550mm | 3080*980*1260mm 3080*980*1260mm 4080*660*550mm
| 4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm |
| Customized design for clean level, size or material is available | ||||
