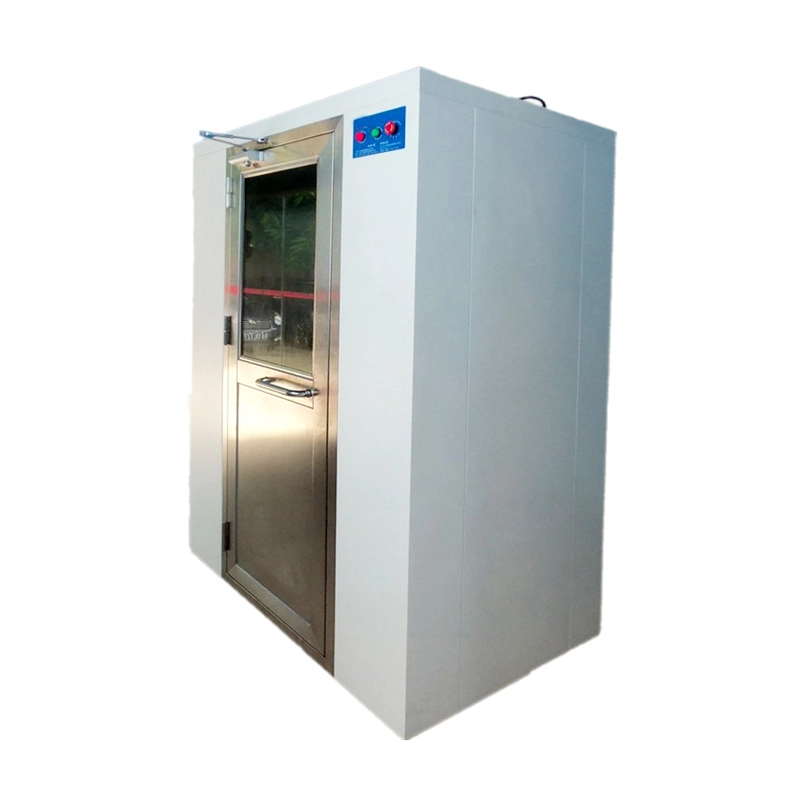

Anti-Static Air Shower room for Semiconductor factory

Brand:

HAOAIRTECH

Model number:

HA-AS1300P1 Series

Material:

inside and outside is steel with power coated or inside is stainless steel304, outside is steel with power coated.

OEM /ODM:

Yes

Certificated:

CE and Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

1sets

Country of Original:

China

Supply ability:

50 set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Write a Review

Introduce

In the electronics industry, the air shower room will blow the dust off the body, suck the dust into the high - efficiency air filter through the circulation system, and people usually think that dust adsorption is removed enough by air flow. But ignoring the gas friction will produce static electricity, and the greater the air flow , the greater the electricity generated, the charged particles in the space is easy to adsorb on the body after blowing dust. Modern electronics industry demand is getting higher and higher for dust control, a the grade of dust free room is getting higher and higher. The practice of air shower room can no longer meet the requirements of modern electronic industry. In order to settle down this problem, the electrostatic eliminator can only be installed in the air shower, Using the air shower original high air speed from SUS304 nozzle send out charged ion produce by the electrostatic eliminator. Once the countless charged ions are brought out quickly, not only the dust on the body can be blown away, but also the static electricity in the air and body can be eliminated, Only this way ,the dust particles will not be brought into the dust chamber.

Product Features

Electrostatic Ion Wind Rod Copper: 2 pcs
Neutralization of static electricity in short time
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
External size: 1300*1000*2180mm
Internal size: 800*930*1910mm
Sus nozzle: 16pcs
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side

Anti-Static Air Shower room for Semiconductor factory 2

/ Products Parameter

MODEL		HA-AS1300P1	HA-AS1300P2	HA-AS1300P3
External size (mm) (WDH)		1300x1000x2180mm	1300x2000x2180mm	1300x3000x2180mm
Work zone (mm) (WDH)		800x930x1910mm	800x1930x1910mm	800x2930x1910mm
Persons per cycle		1-2 person	2-4 person	3-6 person
Material （Option）		1: External is steel with power coated, Internal is SUS304(T=1.0/1.2/1.5mm) 2: External is steel with power coated. Internal is SUS201(T=1.0/1.2/1.5mm) 3: Inside and outside is steel with power coated (T=1.0/1.2/1.5mm)
Control system		1: Control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable) 3: Infrared ray inductor for inside personal shower automatic. 4: Three side blowing with Human voice prompt system. 5: Electrostatic Ion Wind Rod Copper for Neutralization of static electricity in short time, and ion air flow coverage a large area . 6: with CE remark.
The power of fan		380V/50HZ/0.75KW (2 set)	380V/50HZ/0.75KW (4 sets)	380V/50HZ/0.75KW (6sets)
Air flow of fan(m3/h)		1500	1500	1500
Fan run (r/min)		2800	2800	2800
Nozzle in stain less steel		16 pcs	32 pcs	48pcs
Wind speed(m/s)		>25m/s
Noise level(dB)		<75dB
Ion rod copper		2 pcs	4pcs	6 pcs
HEPA FILTER	Size(mm)	630X630X80mm (2 sets)	630X630X80mm (4 sets)	630X630X80mm (6 sets)
	Efficiency (%)	99.995% @ 0.3um mini-pleats HEPA Air Filter
	Air velocity	1000(m3/h)
	Initial resistance(pa)	<180pa
Pre-filter	Size(mm)	775x380x17	775x380x17	775x380x17
	Efficiency (%)	75% @ 0.5um	75% @ 0.5um	75% @ 0.5um
		G3	G3	G3
	resistance(pa)	<30 Pa	<30Pa	<30 Pa
parameter	Power supply	380v/50HZ 3P	380v/50HZ 3P	380v/50HZ 3P
	Net power(kw)	1.5 kw	3kw	4.5 kw
packing size (mm)		1350x1200x2250mm	1350x2200x2250mm	1350x3200x2250mm
Packing material		Standard Export Poly wood Packing(Fumigant free material)
Weigh		320kgs	650kgs	960kgs

/ Specification

Illustrate

1: Control Board 2: Nozzle 3: Infrared Indicator 4: Per-filter 5: Power indicator 6: Emergency switch 7: Working light 8: HEPA air filter (H13 99.995%@0.3um) 9: Door 10: Fan 11: Door closer 12:Purification light 13: Ion rod copper

Anti-Static Air Shower room for Semiconductor factory 3

/ Product Details

part.1

Electrostatic ion wind rod

Anti-Static Air Shower room for Semiconductor factory 4

part.2

Air shower Door

Anti-Static Air Shower room for Semiconductor factory 5

part.3

Clean room Air shower ceiling

Anti-Static Air Shower room for Semiconductor factory 6

part.4

Clean room Air shower floor

Anti-Static Air Shower room for Semiconductor factory 7

part.5

Air Speed Test

Anti-Static Air Shower room for Semiconductor factory 8

Application

The automatic anti-static air shower room can effectively remove the root of the static electricity, guarantee the quality of the electronic industry and improve the production efficiency. The anti static air shower room is mainly used in all kinds of manufacturing industries, such as electronic, photoelectric, semiconductor, plastic, film, printing and so on.

/ Certificated

Anti-Static Air Shower room for Semiconductor factory 9

/ Our Service

Anti-Static Air Shower room for Semiconductor factory 10

Our Service

1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
