    Product Name
    Cleanroom Clean Shed
    Other Name
    clean shed
    Guarantee Time
    12 months
    Purificaiton Rank
    ISO6
    Dimension
    3500X3000X2590mm
    Power Supplier
    220V/50 or 60HZ

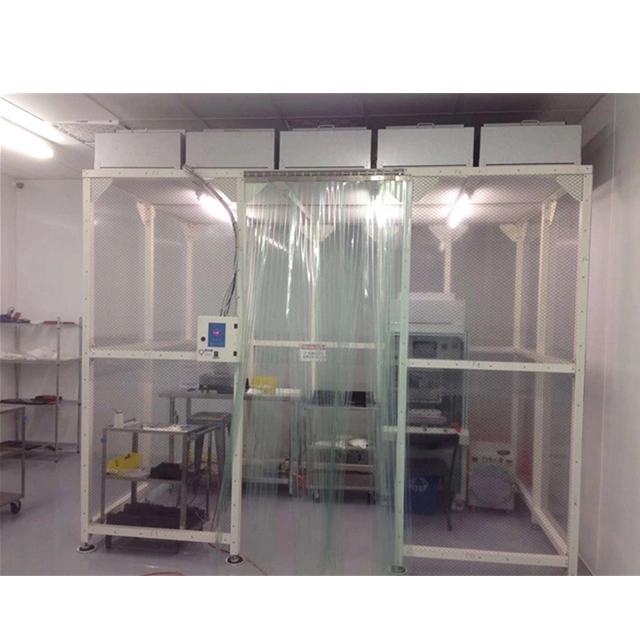

    Class100 Clean Shed For Cleanroom


    ISO6 Clean Shed For Cleanroom 2

    Introduction:


                A Clean shed rooom  or clean room is an environment,

     typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors.

     More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size.

     To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter,

     corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.

    For clean room doors, we have many styles, this product uses stainless steel door.

    The open way we have automatic sensing and manual door opening.

    Stainless steel doors are highly resistant to corrosion and abrasion.

     It is a particularly popular material.

    Technical Paremeters:

    MODELHA-LFB2000HA-LFB3000HA-LFB4000HA-LFB5000

    Ex size (mm)

    (W*D*H)

    2000X2000X25963000X3000X25964000X4000X25965000X5000X2596
    In size (mm)1900x1900x22052900x2900x22053900x3900x22054900x4900x2205
    Purification rankClass100-300,000(FS209E USA)
    HEPA filterEfficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
    Pre-filterEfficiency : 85% @ 5um
    Control systemPC control system / promised speed by control box
    Pressure GaugeAmerican Dywer pressure
    Noise<50-55 dB (test point distance is 1m)

    Air velocity(m3/h)

    0.2-0.5m/s Adjustable (test point distance is 30cm)
    Frame materialstainless steel/steel with power coated/Cast aluminum profile
    Wall frameTempered glass / PVC anti-static curtain (option)
    FanEBM Fan /Taiwan fan/ Domestic fan (option)
    Power supplerAC110/220v 50HZ/60HZ

    Customer's design is avaliable!


    Feature:

     Standard product

    • FFU : galvanized case;smooth surface finish and rust-free
    • HEPA filter : HEPA filters comply with EN 1822;efficency is available from H13 to U17
    • Frame : frames are made of sus stainless steel square pipe.they are good looking and anti-corrosive
    • Buliding envelope : wall is made of anti-static,soft PVC or acrylic
    • Control box : control box is controlled by computer programs.parameters are easy to be adjusted.

    Alternative configuration

    • Pressure difference control device;
    • Pass box;
    • Air shower pass box;
    • ULPA filter;
    • Sticky mat;
    • Air shower;
    • Transparent/grid pvc curtain;
    • Clean bench;
    • Thermo-static and humid -static air conditiong system
