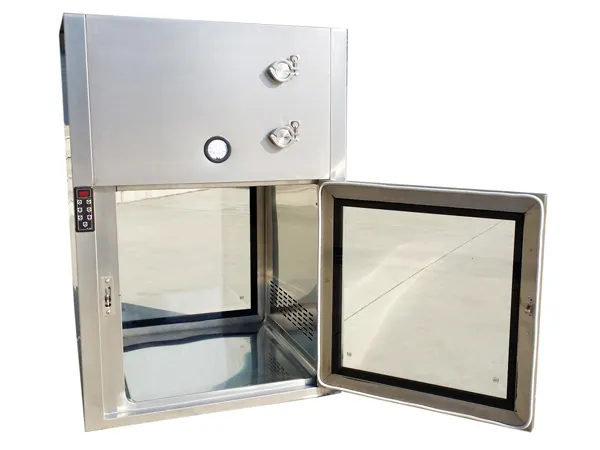

negative pressure pass through box with laminar air flow for electronics factory

Brand:
HAOAIRTECH
Model number:
HA-DPB Series
Material:
inside and outside is stainless steel304 (t=1.0mm)
OEM /ODM:
Yes
Certificated:
CE
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
1sets
Country of Original:
China
Supply ability:
50 set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry
Product Details
With a focus on product quality, HaoAirtech pursues perfection in every detail.HaoAirtech insists on the use of high-quality materials and advanced technology to manufacture air showers. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.

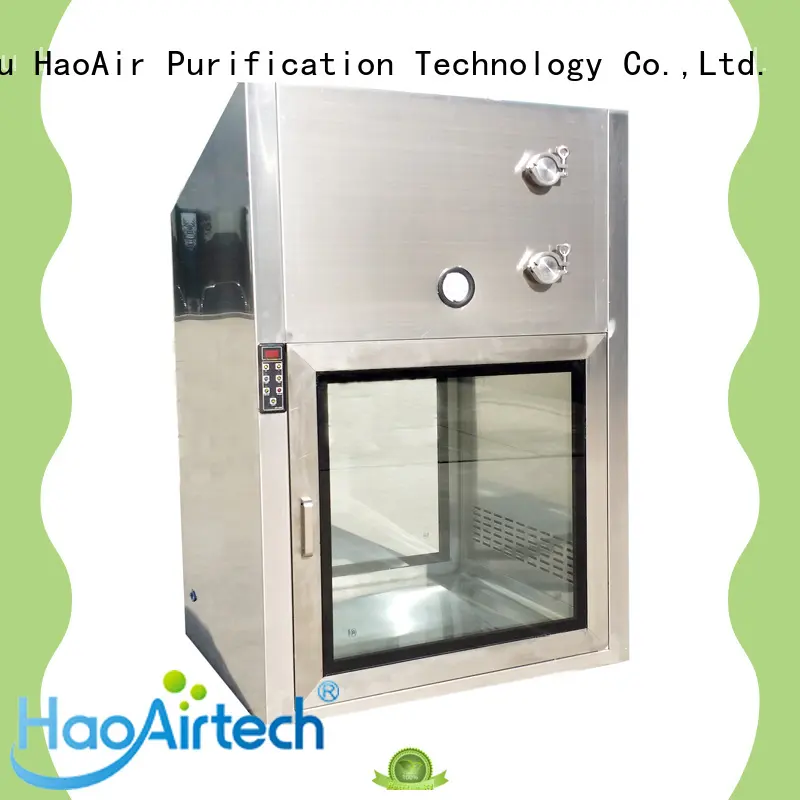

  • negative pressure pass through box with laminar air flow for electronics factory 9
Company Advantages
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has been dedicated to the research and development of special pass through box materials to meet the needs of global customers.
2. This product features extra strength and moisture resistance. Its materials slow down the penetration of water, allowing it not to lose its application properties in humid conditions.
3. The product is characterized by its excellent heat dispersion capacity. Its material has many desirable properties for thermally efficient and durable heat exchangers.
4. The product is easy to clean. People can use a damp cloth or scrubbing brush to wipe the dirt or stain easily.
5. This mattress can help one sleep soundly through the night, which tends to improve memory, sharpen the ability to focus, and keep the mood elevated as one tackle their day.



Product Features
Pass box inside bottom corner is round shape so that there is any dust accumulation
External size: 800*670*1150mm
Internal size: 600*600*600mm
External Material: stainless steel304 (t=1.2)
Inside Material: stainless steel304 (t=1.2)
Double layer vacuum glass
Both side door is inlaid type
Locker: software computer interlocking
DOP Gel Sealant Mini-Pleats HEPA air filter
Air speed: 0.45m/s adjustable
DOP/POA port: 1set
negative pressure pass through box with laminar air flow for electronics factory 10


/ Products Parameter


MODEL

  HA-DPB500

HA-DPB600

HA-DPB700

External size (mm)
     (W*D*H)

700x570x1050mm

800x670x1150mm

900x770x1250mm

Work zone (mm)
     (W*D*H)

500x500x500mm

600x600x600mm

700x700x700mm

Purification rank

Class 100

Material (Option)

1: Entirety Sus304.(T=1.2/1.5mm)
2: Entirety sus201. (T=1.2/1.5mm)
3:External is steel with power coated,    Internal is SUS304(T=1.2/1.5mm)
4: External is steel with power coated.    Internal is SUS201(T=1.2/1.5mm)





Control system

1: Gel Sealant mini-pleats HEPA air    filter so that pass the DOP test without any problem.
2: Pass Box inside bottom corner is round    shape without any dust
accumulation .
3: Double layer vacuum glass have very    good appearance
4: Software computer interlocking door    with long time using life
5: Air speed is    0.45m/s adjustable

UV light

                    1 PCS

Power supply

                   220v/50HZ

packing size    (mm)

800x870x1300mm

1000x870x1400mm

1100x970x1500mm

Packing    material

Standard Export Poly wood Packing(Fumigant free material)



/ Specification

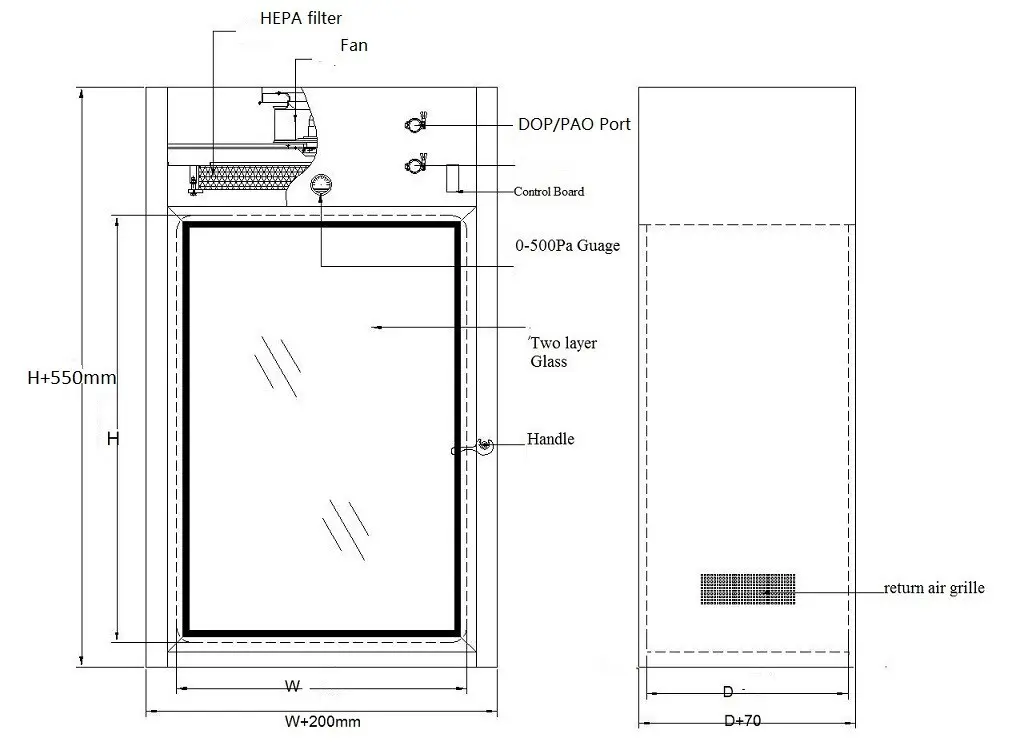

Illustration

1: Computer software control board 2: Door handle 3: Double layer glass door 4: UV light


negative pressure pass through box with laminar air flow for electronics factory 11



/ Product Details



part.1

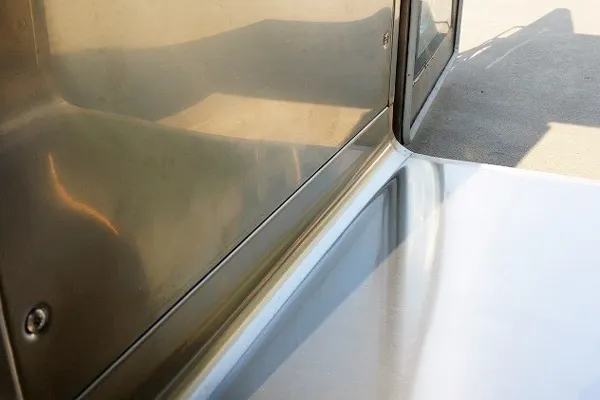

Pass Box inside corner
negative pressure pass through box with laminar air flow for electronics factory 12

part.2

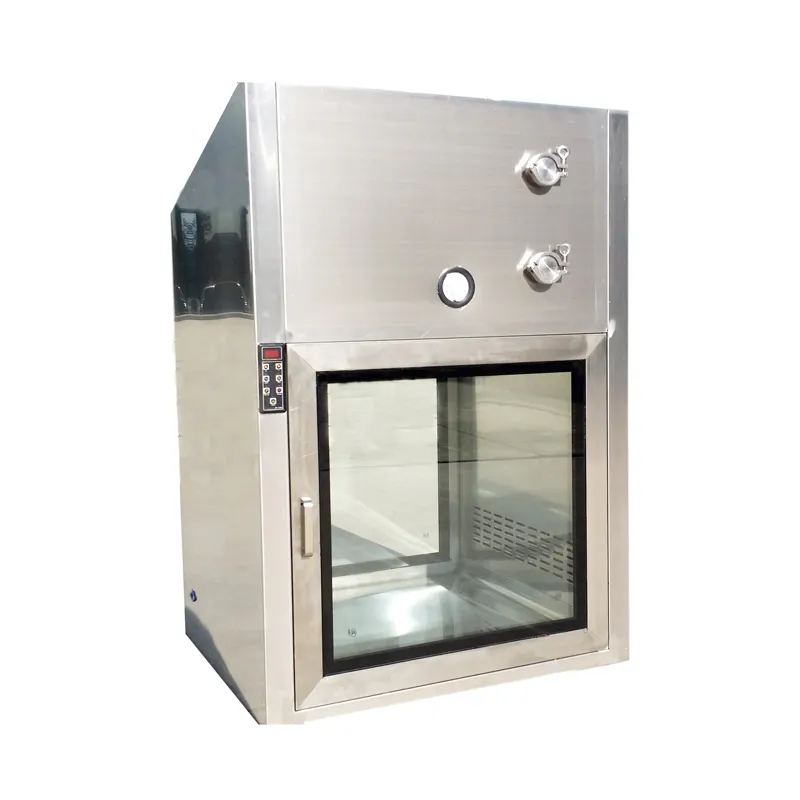

Dynamic Pass Box
negative pressure pass through box with laminar air flow for electronics factory 13

part.3

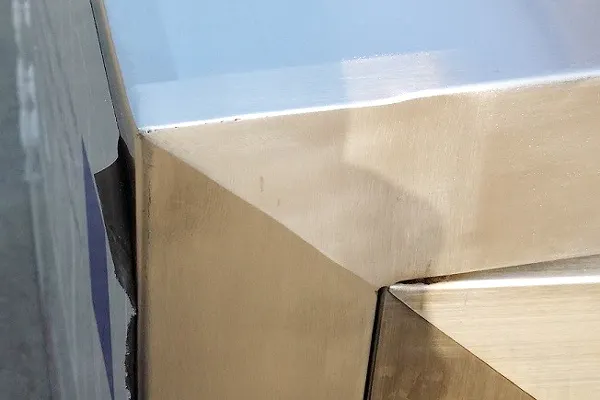

Pass Box outside corner
negative pressure pass through box with laminar air flow for electronics factory 14


Introduce:  Dynamic Pass Box

Dynamic pass box is a kind of class 100 purification equipment for Pharmaceutical clean room. One hand, it plays the role of the air lock, Does not let high grade rank clean room pressure be leaked. On the other hand, the self purification effect is realized in the process of pass box to ensure the clean of the articles entering the clean area and reduce the cross pollution caused by the objects.Customized design is available.



/ Certificated:

negative pressure pass through box with laminar air flow for electronics factory 15





/ Our Service


negative pressure pass through box with laminar air flow for electronics factory 16

Our Service

1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .




Company Features
1. With years of development, Guangzhou HaoAir Purification Technology Co.,Ltd. has become the mainstay of China’s pass through box industry, delivering a steady stream of dynamic box achievements.
2. Our company boasts significant human resources. Most of them are industry professionals who can deploy their comprehensive know-how and sense of innovation to guarantee the reliability and performance of our products.
3. HaoAir Purification devotes itself to create value for clients. Call! We strive to win the global dynamic pass box working principle market in the future. Call! We are a professional wall pass through box supplier with a strong influence on our market. Call!
