We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

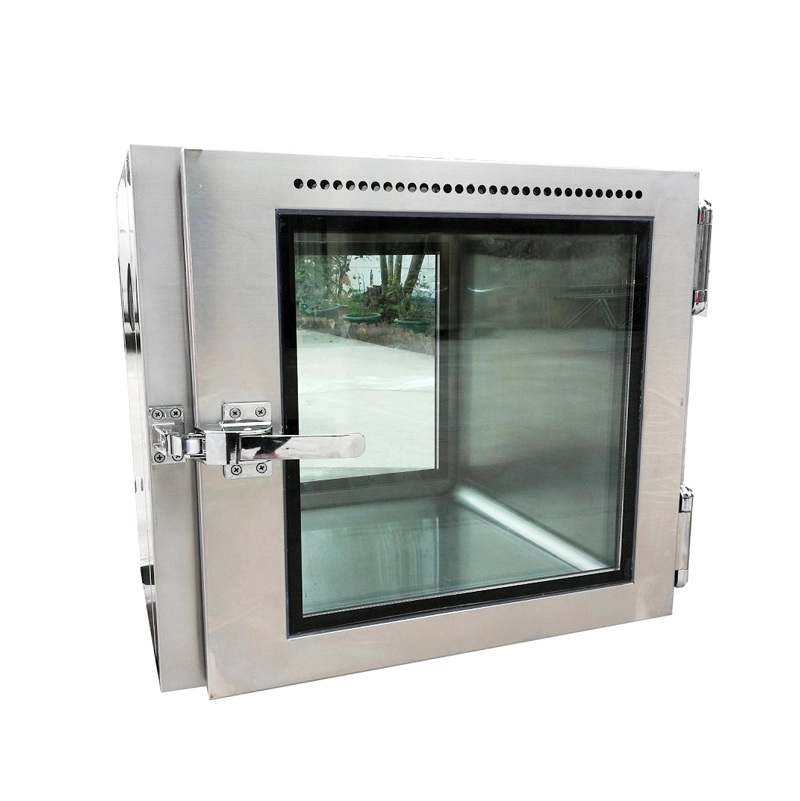

Clean Room  Negative Pressure Pass Box  for  HVAC  system 1
Clean Room  Negative Pressure Pass Box  for  HVAC  system 1

Clean Room Negative Pressure Pass Box for HVAC system

    oops...!

    no product data.

    Go to homepage



    Product Features
    Pass box four side is inner arc so that there is any dust accumulation.
    One row hole on the top door so that the purification air was force out of clean room.
    External size: 760*670*690mm
    Internal size: 600*600*600mm
    External Material: stainless steel304 (t=1.2)
    Inside Material: stainless steel304 (t=1.2)
    Double layer vacuum glass
    Mechanical interlocking
    Clean Room  Negative Pressure Pass Box  for  HVAC  system 2


    / Products Parameter


    MODEL

      HA-PPB500

    HA-PPB600

    HA-PPB700

    External size (mm)
         (W*D*H)

    660x500x590mm

    760x600x690mm

    860x700x790mm

    Work zone (mm)
         (W*D*H)

    500x500x500mm

    600x600x600mm

    700x700x700mm


    Material (Option)

    1: Entirety Sus304.(T=1.2/1.5mm)
    2: Entirety sus201. (T=1.2/1.5mm)
    3:External is steel with power coated,    Internal is SUS304(T=1.2/1.5mm)
    4: External is steel with power coated.    Internal is SUS201(T=1.2/1.5mm)


    Control system

    1: Both door is mechanical interlocking
    2: Pass Box inside four corner is round    shape without any dust accumulation
    3: Double layer vacuum glass have very    good appearance
    4; One row hole on the top door so that    the purification air was force out of clean room

    UV light

                        1 PCS

    packing size    (mm)

    800x780x850mm

    910x880x940mm

    1100x980x1050mm

    Packing    material

    Standard Export Poly wood Packing(Fumigant free material)



    / Specification


    Clean Room  Negative Pressure Pass Box  for  HVAC  system 3



    / Product Details



    part.1
    Pass Box PU Gasket
    Clean Room  Negative Pressure Pass Box  for  HVAC  system 4

    part.2
    Pass box four side corner is round shape
    Clean Room  Negative Pressure Pass Box  for  HVAC  system 5


    Introduce

    The special design of the negative pressure pass box to form a pressure difference between the positive pressure of the clean room and the negative pressure in contaminated area, it forces the air flow direction from the clean area to the contaminated area always. In this flow process, pass box inside dust on the cargo and the suspended particles in the air are taken away to achieve the possibility of completely avoiding cross contamination. four side inner arc design proved the dust accumulation, Overall seamless connection soft PU Foam gasket have very goods performance in eliminate air leaking problem.



    / Certificated


    Clean Room  Negative Pressure Pass Box  for  HVAC  system 6
    Clean Room  Negative Pressure Pass Box  for  HVAC  system 7



    / Our Service


    Clean Room  Negative Pressure Pass Box  for  HVAC  system 8

    Our Service

    1:Document
    A: Document for custom clear: 1 sets
    B: Assemble draw: 1 pcs
    C: Circuit diagram draw: 1 pcs
    D: Test report : 1sets
    E: Additional IQ/OQ/PQ document is available upon request.
    2: Air Shower Spare Part so that you can replacement in future by yourself:
    A: HEPA air filter +Pre-filter (as your request) Note: HEPA air filter should be replacement in half and one year. Pre-filter should be replacement in each 6 months, but it can refresh no more than 3 times
    B: Sensor (As your request)
    C: Control board (as your request)
    3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
