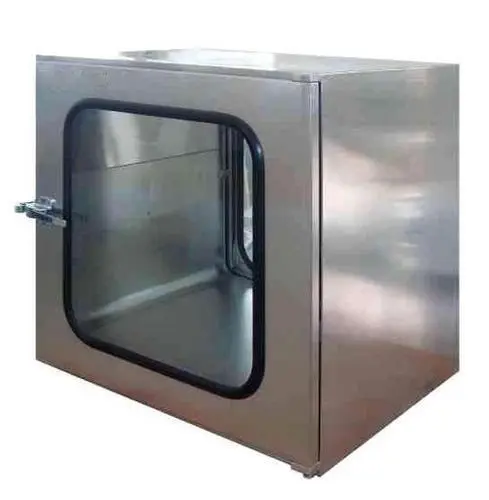

    SS304/ Coldrolled Steel with Baked Painting Cleanroom Pass Boxes


    Cleanroom Pass Boxes Introduction:

    Pass boxes are the perfect tool for transporting items in and out of cleanrooms. These boxes are widely used in laboratories, hospitals, pharmaceutical and light-industrial environments. They not only offer full protection but also facilitate transportation of products.


    Cleanroom Pass Boxes Features:

    1.Mechanical interlock is reliable, maintenance-free, fail safe and maintains cleanroom integrity by preventing both doors from being opened at the same time.

    2.All HaoAir products are manufactured for the most demanding controlled environment applications.

    3.All components are designed for maximum chemical resistance and enhanced durability for a long service life.

    4.The main body of the pass box is constructed of industrial-grade electrogalvanized steel.

    5.The pass box base surface is constructed of stainless steel, making the work zone easy to clean.

    6.Acrylic doors provide a clear view of the internal chamber.

    7.Standard 1 year warranty.


    The Pass Box is approval by CE and RoHS certificate.

    Customer’s design is available.


    Cleanroom Pass Box Specification:


    Cleanroom Pass Box HA-PB Series

    Model

    HA-PB500

    HA-PB600

    HA-PB750

    Outer Size(mm) (WXDXH)

    660x500x590

    760x600x690

    910x750x840

    Inner Size(mm)(WXDXH)

    500x500x500

    600x600x600

    750x750x750

    Construction

    1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting.

    2. External is steel with power coated, internal is SUS304.

    3. External is steel with power coated, internal is SUS201.

    4. External is steel with power coated, internal is SUS316.

    Thickness

    1.0/1.2/1.5mm

    Toughened Glass Window

    Double layer vacuum glass.

    Four Corner

    Four side is inner arc without any blind angle.

    Interlock

             Mechanical or electric interlocking.

    Gasket

    PU foam gasket

    Accessories

    1. Interphone

    2. UV light

    3. Roller

    Power

                         220V/50Hz or 60Hz

    Clean room Pass Boxes Application:

    SS304/ Coldrolled Steel with Baked Painting Cleanroom Pass Boxes 3


    Cleanroom pass box details:

    SS304/ Coldrolled Steel with Baked Painting Cleanroom Pass Boxes 4
