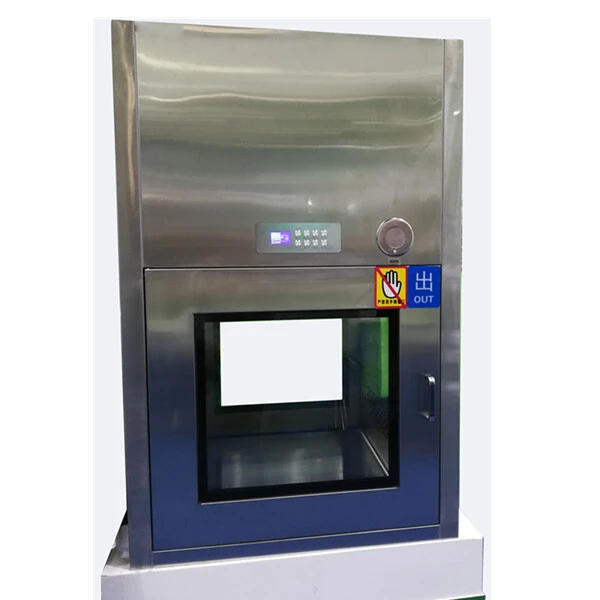

Pharmaceutical Dynamic Pass Boxes
Pharmaceutical Dynamic Pass Boxes
TECHNICAL SPECIFICATIONS
Two Stage filtration
Available in powder coated Mild Steel, SS 304 / SS 316/ SS 316 or a combination of both.
Finish - Matt finish
Confirms to GMP norms
Mechanical or Electromagnetic Interlocking
Floor and wall mounted design
Maximum chemical resistance construction
Modular & economical
Corrosion resistant
Aesthetically designed
Product Characteristic :
Pharmaceutical dynamic pass box are self-contained units installed at the entrance to clean rooms.
They minimize the amount of particulate contamination and is easy to install and adaptable to existing facilities.
These boxes operate on the principle of one door opening at a time with electromagnetic interlocking so as to avoid any possibility of cross contamination.
Pharmaceutical dynamic pass box assists in transfer of materials driven through a controlled environment but without much personnel movement.
Furthermore, this box helps in prevention of contaminants entrance either in the clean room or between various classified areas.
Dynamic Pass Boxes are designed in conformation to the international standards and are used for transferring
the material from and into the classified clean room without contaminating the air of clean room.
In the process, room door is not required to open. These can be easily installed on the wall between the classified room and unclassified room.
Products Parameter：
| Air cleanliness : | ISO Class 5 / Class 100 / M 3.5 AREA |
| Air Velocities : | 0.45 ± 0.05 mps (90 ± 20 FPM) |
| Air Flow : | Horizontal / Vertical |
| Noise Level : | Less than 65 dB |
| Vibration Level : | Minimum |
| POWER SUPPLY : | 230V AC, 1-Ø, 50HZ |
| MOC : | GI Powder Coated / SS-304 / SS-316 / Combination |
| Door : | Swing Type Double Door (Double skinned) with View Panel with SS Hinges & ‘D’ Handle |
| Internal Coving for easy cleaning | |
| Two Stage filtration | |
| EU7 - Intermediate Filter (95% down to 3 micron) | |
| EU14 - HEPA Filter - Supply / Exhaust (99.999% down to 0.3 micron) | |
| Fluorescent Lights (interlocked with Door) | |
| UV Light (interlocked with Door) | |
| Differential Pressure Gauges : | 01 No. (HEPA Filter) |
| Door Opening With Solid State Electronic Inter Locking Mechanism | When both door closed; both are elec. Magnet locked; For open press touch screen to release the door |
| At A Time Only One Door Opened | |
| Audio / Visual Indication for material is kept inside the pass box | |
| In close condition of both door : UV Light will be on, | |
| When open any one door : UV will off and FL will on | |
| DOP Port | 1set |
| DQ, IQ, OQ, PQ Documentation | as your request, |
