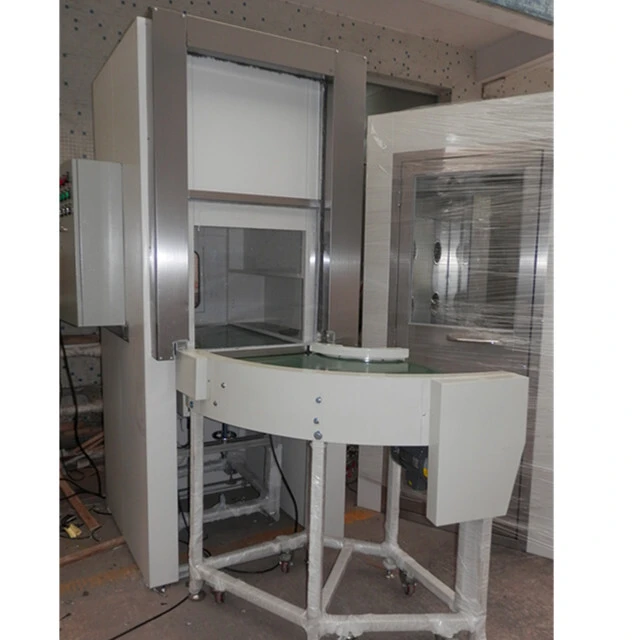

Vertical Slide Door Air Shower Pass Through 1
Vertical Slide Door Air Shower Pass Through 1

Vertical Slide Door Air Shower Pass Through

    oops...!

    no product data.

    Go to homepage

    Vertical Slide Door Air Shower Pass Through



    PLC Control Logic For Air Shower Pass Through:


     Sensor1 +Front Vertical Slide Door 1 + Haoairtech Auto Conveyor Line+ Sensor 2+Air Shower Pass Box+Back Vertical Slide Door2 + Sensor 3



     Sensor1:  This sensor should be fix on  auto conveyor line at end postion next to vertical front door 1

     Sensor 2:  This should be fix inside of air shower pass box.

     Sensor 3:  This should be fix on auto conveyor line next to back vertical slide door 2 .



    1: When the carton pass the sensor 1 , the system will be give single to door. so that front vertical slide door open. meanwhile the keling auto conveyor line start working .

     2: When the carton pass the sensor 2 , system will be make the front door closed, and both door interlocker ,the self-clean system begain working (0-60S) adjustable .

     3: after the self-clean system finshed, the back side vertical slide door 2 will be opened , the system will be give singe to keling auto conveyor and yourself auto conveyor line start working ,

     4: when the carton pass the sensor 3 . the system remind the vertical slide door2  closed and keling conveyor line stop working.



     Note :



    1: when the carton1 still inside the pass box , or still not pass the sensor3,  if there are new carton arrived sensor1, the system can not give any single to front door, untill the carton1 pass the  sensor 3 .


    Vertical Slide Door Air Shower Pass Through 2

    Parameter:



    MODE

    Air Shower   pass box with PLC control system

    External size

    1000x8000x2285 mm

    Internal size

    600X600x500mm

    Air speed

    >25m/s

    Noise (dB)

    75Db

    Nozzle

    8pcs

    Filtration   Step

    H13  99.995%@0.3um

    EU3  75%@2um

    Fan

    1 Sets (0.75KW 380V/50HZ    )

    Booth Locker

    Electric interlocker

    Door

    Entrance and   Exit door is automatic vertical glass   slide door

    PLC Control   box

    1 set


    PLC Control Box :


    Vertical Slide Door Air Shower Pass Through 3
