negative pressure pass box with conveyor line for hvac system
Brand:
haoairtech
Model number:
KEL-ASPB500
Material:
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
OEM /ODM:
OEM /ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 days
MOQ:
1 set
Product Name
Haoairtech
Other Name
pass box
Guarantee Time
12 month
Air Shower Pass Box Clean Room
We are dust free design and manufacturer specialist, we have a R&D department,and have our own factory, also we have some long-time cooperated suppliers. For the whole dust free project, from design until the dust free plant installation,we will do one-stop service for you,and we will keep lifetime after sales service for your dust free project, all products for dust free we are provide for you, as clean room, air shower room, pass box, ect.
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s
individual results for each unit.
individual results for each unit.
Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing
Pass box adopts industrial stainless steel material as the frame,with sterilizing lamp which used in Pharmaceutical Pass Box, anti-static curtain hanging around (or tempered glass), its internal purification level can reach 100- 10000 level.
It is suitable for areas where the local purification level is high in the operating area.
Products Parameter:
MODEL | KEL-ASPB500 | |||||
External size (mm) | 850x500x1350mm | |||||
Work zone (mm) | 500x500x500mm | |||||
Nozzle | 4 PCS | |||||
Air speed | 18-25m/s | |||||
Per-filter | 425x275x17mm | |||||
G3 | ||||||
HEPA filter | 360x360x69mm | |||||
99.99%@0.3um H13 | ||||||
Optional accessories | 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller | |||||
Power supply | 0.75KW 380V/50HZ | |||||
packing size (mm) | 1050x780x1600mm | 1100x880x1700mm | 1240x1030x1850mm | |||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||||

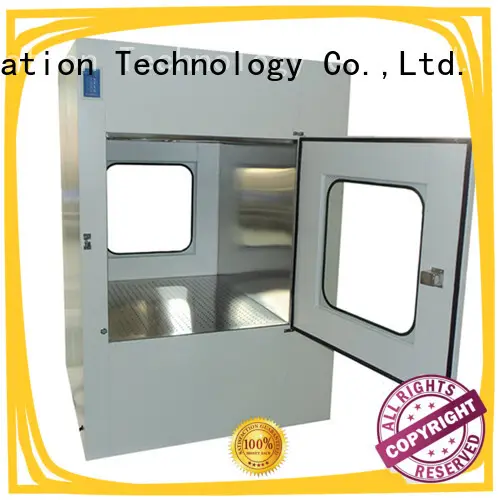

Air Shower Pass Box:
Air shower pass box Bottom:
Air Shower Pass Box Top Nozzle:
