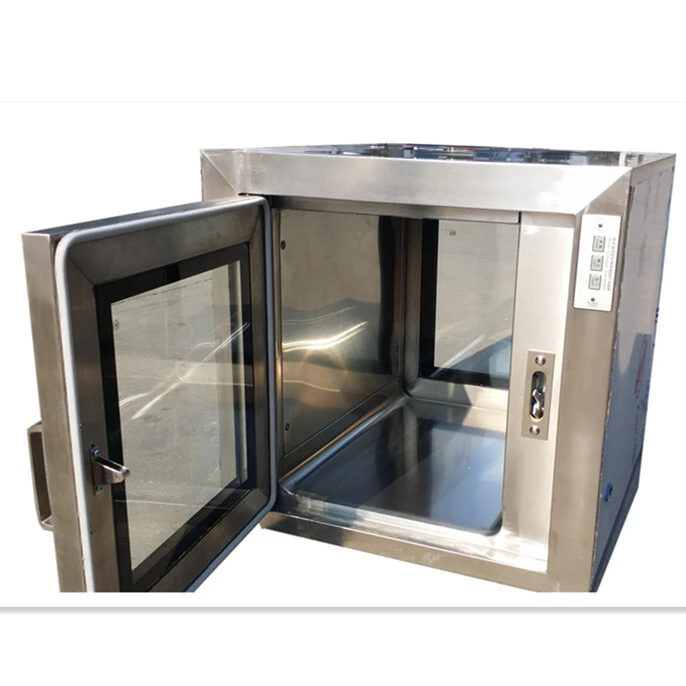

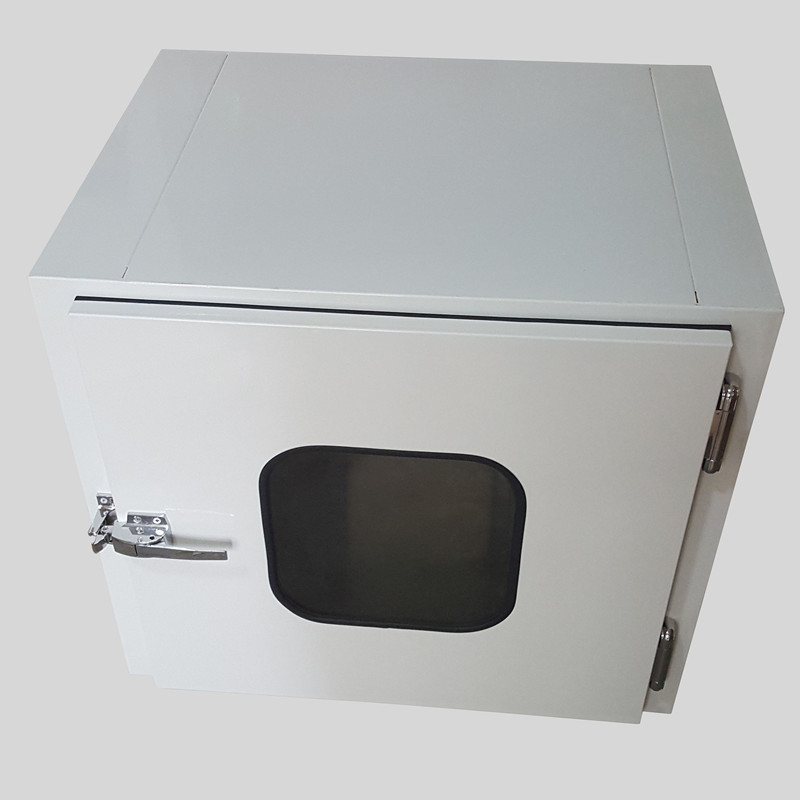

    SUS304/SUS316 Cleanroom Static Pass Through Chamber

    Static Pass Through Introduction:

    The pass box is a device to keep the two areas at different grade from cross contaminants from one space to another during product or tool transfer. This is a safe and effective solution since they can keep the materials from contamination within a controlled environment. It can also be used to protect the materials from external contamination.


    Static Pass Through Features :

    1.Allows contamination-free transfer of materials in and out of the cleanroom.

    2.Eliminates unnecessary personnel garbing and entry.

    3.Ideal for general cleanroom use - select CleanSeam, BioSafe or Smart models for use with biological samples.

    4.Stainless steel doors and hinges eliminate corrosion and extend service life.

    5.Fool-proof automatic interlock mechanism prevents cross-contamination, is reliable and maintenance-free.

    6.Material options accommodate many application requirements, from chemical resistance to static control.

    7.Accessories include latch locks, sloping CleanTop and removable shelves.

    8.Easy to install.


    The Static Pass Box is approval by CE and RoHS certificate.

    Customer’s design is available.


    Clean Room Static Pass Box Specification:


    Clean Room Static Pass Box HA-SPB Series

    Model

    HA-SPB500

    HA-SPB600

    HA-SPB700

    Outer Size(mm) (WXDXH)

    700x570x590

    800x670x690

    900x770x790

    Inner Size(mm)(WXDXH)

    500x500x500

    600x600x600

    700x700x700

    Construction

    1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting.

    2. External is steel with power coated, internal is SUS304.

    3. External is steel with power coated, internal is SUS201.

    4. External is steel with power coated, internal is SUS316.

    Material Thickness

    T=1.0/1.2/1.5mm

    Window

    Double layer vacuum glass

    Interlock

    Mechanical or electric interlocking.

    Four Corner

    Bottom is inner arc, preventing dust accumulation.

    Accessories

    1. Interphone

    2. UV light

    3. Roller

    Power supply

    220V/50Hz or 60Hz


    Different Type Pass Boxes For Review:

    SUS304/SUS316 Cleanroom Static Pass Through Chamber 3

    Cleanroom Static Pass Box Application:

    SUS304/SUS316 Cleanroom Static Pass Through Chamber 4
