    Introduction :

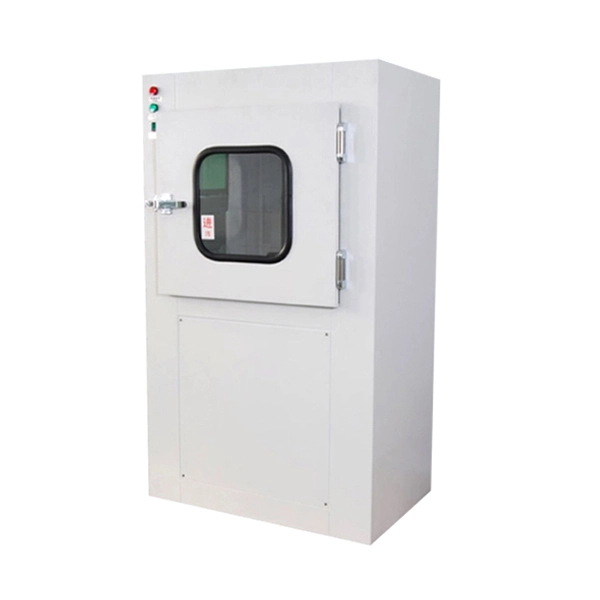

    Air shower pass box is a kind of equipment for clean room and is mainly used to pass the small article between room and unclean room or two rooms .
    The air shower pass box is devised on the basis of the air shower . With a electronic interlocking system , the pass box with air shower can effectively minimize the cross pollution .
    And the air shower function can significantly reduce surface contamination on materials entering or exiting the controlled environment .

    Application :

    Air shower pass box is widely used in the clean environment , such as : micro - technology , biological laboratory , pharmaceutical factory , national defense , precise instrument , aseptic packaging , LCD , etc .

    Features :

    1. Electronic device ensure the doors on both side could not be opened simultaneously , which can reduce the cross contamination .
    2. The cabinet material are available in steel with power coated , stainless steel , which are maximum chemical resistance and enhanced durability for a long life .
    3. The duration of air shower pass box can be adjusted to 0-99 seconds , and automatic shower set to work by infrared ray inductor .
    4. Arc shaped inner bottom avoiding forming dust , ensures the beautifulness and easy maintenance .
    5. High powered blower , large air volume with low noise.



    Automatic Blowing Stainless Steel Air Shower Pass Through Box For Cleanroom 3

    Automatic Blowing Stainless Steel Air Shower Pass Through Box For Cleanroom 4

    Specifications:


    Air Shower Pass Through Box

    Model

    HA  APB600

    HA APB700

    HA  APB800

    External Size

    (W*D*H)mm

    940X600X1450

    1090X700X1500

    1140X800X1550

    Internal Size

    (W*D*H)mm

    600X600X600

    700X700X700

    800X800X800

    Pre-filter size

    (W*D*H)mm

    570X290X17

    745X290X17

    795X290X17

    Hepa filter size

    (W*D*H)mm

    625X625X150

    Hepa filter Efficiency

    99.99%@0.3um

    Fan Power

    380V  50HZ  750W (1 set)

    Fan Run

    2800 r/min

    Air Flow

    1200 m3/s

    Noise

    <65dB

    Nozzle

    4pcs
