negative pressure cleanroom pass box with laminar air flow for electronics factory

Company Advantages
1. cleanroom pass box is manufactured by the material of pass box wikipedia .
2. The product is not likely to accumulate too much heat. Its powerful cooling system is designed to maintain the proper temperature of mechanical parts, allowing it to have good heat dissipation.
3. Whether the users suffer from night sweats, are a hot sleeper, or prefer feeling cooler and drier while they're catching some z’s, this product is an ideal choice.

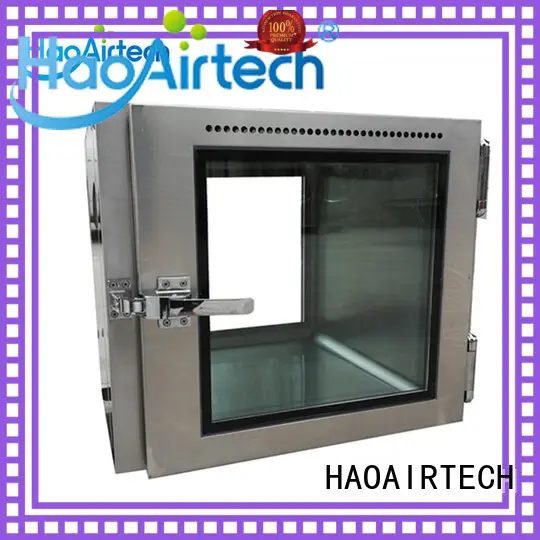

Negative Pressure Pass Through Box

Product Features：

Pass box four side is inner arc so that there is any dust accumulation.

One row hole on the top door so that the purification air was force out of clean room.

External size: 760*670*690mm

Internal size: 600*600*600mm

External Material: stainless steel304 (t=1.2)

Inside Material: stainless steel304 (t=1.2)

Double layer vacuum glass

Mechanical interlocking

Introduce:

The special design of the negative pressure pass box to form a pressure difference between the positive pressure of the clean room and the negative pressure in contaminated area,

 it forces the air flow direction from the clean area to the contaminated area always.

In this flow process, pass box inside dust on the cargo and the suspended particles in the air are taken away to achieve the possibility of completely avoiding cross contamination.

four side inner arc design proved the dust accumulation, Overall seamless connection soft PU Foam gasket have very goods performance in eliminate air leaking problem.

Products Parameter:

MODEL	HA-PPB500	HA-PPB600	HA-PPB700
External size (mm) (W*D*H)	660x500x590mm	760x600x690mm	860x700x790mm
Work zone (mm) (W*D*H)	500x500x500mm	600x600x600mm	700x700x700mm
Material  （Option）	1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety sus201. (T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
Control system	1: Both door is mechanical interlocking  2: Pass Box inside four corner is round shape without any dust accumulation 3: Double layer vacuum glass have very good appearance  4; One row hole on the top door so that the purification air was force out of clean room
UV light	1 PCS
packing size (mm)	800x780x850mm	910x880x940mm	1100x980x1050mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Draw:

Company Features
1. Over the years, Guangzhou HaoAir Purification Technology Co.,Ltd. has earned a wealth of expertise in the production of cleanroom pass box . We are a prominent manufacturer in the industry.
2. HAOAIRTECH mastered high technology to produce pass box manufacturers .
3. We strictly embrace sustainable development in our business. We adopt advanced technologies to manufacture our products, minimizing our impacts on the environment. We consciously to conduct good business actions. We have made corresponding plans to achieve sustainability. We will try to readjust our industrial structure to a clean and environmental-friendly level. The company incorporates social responsibility into its overall business developing strategy. To execute this strategy, we are trying hard to end or relief the poverty of local areas by driving local economic growth. Inquire now! We are committed to acting in an environmentally responsible way using best practice and best available materials in all our activities. Inquire now!
