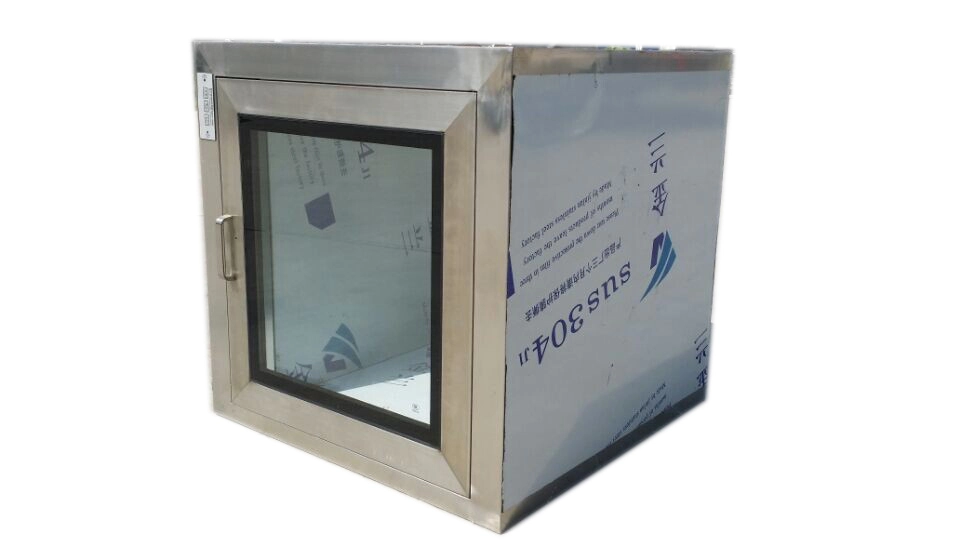

Custom static pass box for cleanroom 1
Custom static pass box for cleanroom 1

Custom static pass box for cleanroom

    oops...!

    no product data.

    Go to homepage
    Product Name
    Haoairtech
    Other Name
    pass box
    Guarantee Time
    12 month

    Custom static pass box for cleanroom


    Introduction:


    The pass box is a device that prevents contamination when the indoor and outdoor output items are clean.

    This product is divided into three categories: electronic interlock transfer window, mechanical interlock transfer window and self-net transfer window:

    Electronic interlock transfer window, opening and interlocking of window door with electronic interlocking device, ultraviolet lamp in the window;

    Mechanical interlock transmission window, opening and interlocking of window door with mechanical interlocking device, ultraviolet lamp in the window,Self-net transmission, window door The use of electronic interlocking means to open and chain, the window is equipped with ultraviolet light, fan and high-efficiency filter and other purification devices.


    Working principle of pass box



    1. Mechanical interlocking device: The internal interlocking is realized in the form of a machine. When one door is opened, the other door cannot be opened. The other door must be closed before the other door can be opened.



    2. Electronic interlocking device: The internal use of integrated circuits, electromagnetic locks, control panels, lights and other interlocking, when one of the doors is open, the other door open indicator light is off, to inform this door can not be opened, while electromagnetic Lock action to achieve interlocking. When the door is closed, the other electromagnetic lock starts to work and the indicator lights up, indicating that the other door can be opened.





    Products Parameter:

    MODEL

    HA-DPB600

    External size (mm)
    (W*D*H)

    760x600x690mm

    Work zone (mm)
    (W*D*H)

    600x600x600mm

    Purification rank

    Class 100

    Material
    (Option)

    1: Entirety Sus304.(T=1.2/1.5mm)
    2: Entirety Sus201.(T=1.2/1.5mm)
    3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
    4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

    Control system

    1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.
    2: Pass Box inside bottom corner is round shape without any dust
    accumulation .
    3: Double layer vacuum glass have very good appearance
    4: Software computer interlocking door with long time using life
    5: Air speed is 0.45m/s adjustable

    UV light

    1 PCS

    Power supply

    220v/50HZ

    Packing material

    Standard Export Poly wood Packing(Fumigant free material)


    Pass box outlook:

    pass box4


    pass box a  (1)

    IMG_201803
