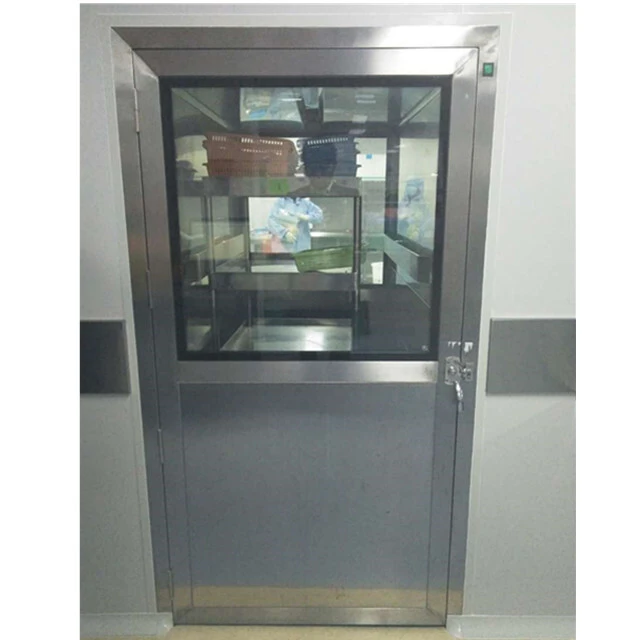

    Transfer Hatch Pass Boxes



             In order to meet the distinguish requirements of the clients, we offer a range of Hatch & Pass Box. Easy to install and maintenance free,

             these products comes along with higher quality finish, which is highly demanded by the clients.

             We also provide all the selection criteria and act as a solution provider to its customers.

           Our offered range is tested to match the actual operating conditions and are highly acclaimed by the patrons.


     Specifications:


           A hatch pass box will be provided in each operation theater to remove Waste material from the operation theater to dirty linen area just adjacent to operation theater.

    Each hatch will be equipped with two doors and the door will be operated electronically.

    The hatch will be designed in such a way that only one door will be opened at one time.

    The UV light will be so installed that it is kept on while both the doors are closed,

    this UV light has to be automatically turned ‘off in case of opening of either of the doors.

    There shall be indicators on both sides of the OT so that door open /close status can be monitored from both ends.



    Technical Specification :

    MaterialStainless Steel304/316
    Size1000*870*1300mm
    Usage/ApplicationIndustrial
    Power SourceElectric
    Internal size800*800*800mm.
    Air Velocity0.36-0.5m/s.

    Hepa filter 99.99%@0.3um
    U  V Light  one pcs
