Air Shower Pass Box Clean Room

Brand:

haoairtech

Model number:

KEL-ASPB500

Material:

1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)

OEM /ODM:

OEM /ODM

Certificated:

Start port:

GUANGZHOU

Delivery time:

10 days

MOQ:

1 set

Inquiry

Write a Review

Product Name

Haoairtech

Other Name

pass box

Guarantee Time

12 month

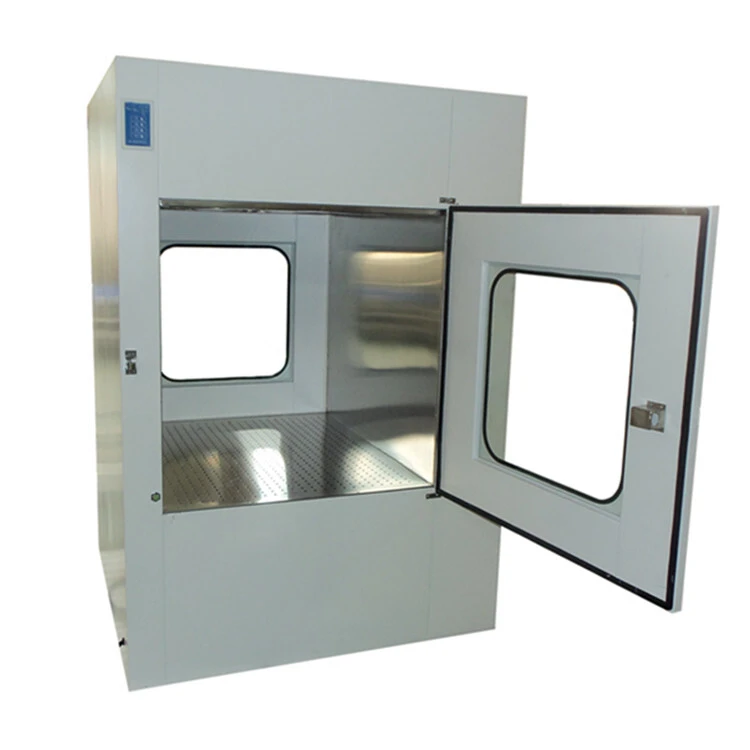

Air Shower Pass Box Clean Room

We are dust free design and manufacturer specialist, we have a R&D department,and have our own factory, also we have some long-time cooperated suppliers. For the whole dust free project, from design until the dust free plant installation,we will do one-stop service for you,and we will keep lifetime after sales service for your dust free project, all products for dust free we are provide for you, as clean room, air shower room, pass box, ect.
Factory testing (all the sets you ordered):
All of equipment is individually factory tested for safety and performance in accordance with international Standards.
Each unit is shipped with a documentation outlining the tests undertaken and the unit’s
individual results for each unit.
 Factory test include:
--appearance testing
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--noise testing

Pass box adopts industrial stainless steel material as the frame,with sterilizing lamp which used in Pharmaceutical Pass Box, anti-static curtain hanging around (or tempered glass), its internal purification level can reach 100- 10000 level.

It is suitable for areas where the local purification level is high in the operating area.

Products Parameter:

MODEL	KEL-ASPB500
External size (mm) (WDH)	850x500x1350mm
Work zone (mm) (WDH)	500x500x500mm
Nozzle	4 PCS
Air speed	18-25m/s
Per-filter	425x275x17mm
	G3
HEPA filter	360x360x69mm
	99.99%@0.3um H13
Optional accessories	1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller
Power supply	0.75KW 380V/50HZ
packing size (mm)	1050x780x1600mm	1100x880x1700mm	1240x1030x1850mm
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Air Shower Pass Box:

Air shower pass box Bottom:

Air Shower Pass Box Top Nozzle:
