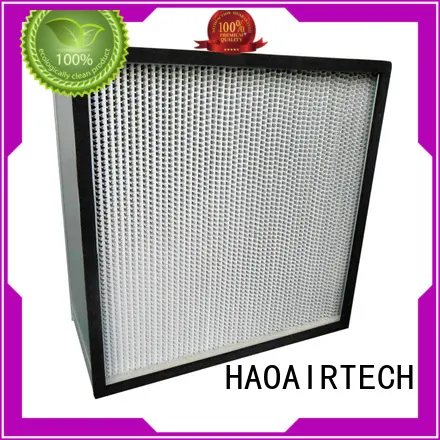

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH

Brand:

HAOAIRTECH

Model number:

HA-HEPA-A Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Product Comparison

Closely following the market trend, HaoAir uses advanced production equipment and manufacturing technology to produce pass boxes. The product receives favors from the majority of customers for the high quality and favorable price.Compared with other products in the same category, pass boxes has outstanding advantages which are mainly reflected in the following points.

Company Advantages
1. HAOAIRTECH air filter replacement is exclusively developed with good phone adaptability by the R&D team. It has been proved that it meets safety requirement.
2. The product has an extended service life, giving customers a higher economic benefit.
3. This product is functional, which caters to the customers' needs.
4. In response to market demand, Guangzhou HaoAir Purification Technology Co.,Ltd. has continuously developed new air filter hepa products.

Characteristics

The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 9

Introduce

Absolute Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

/ Operating Conditions

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media spacer	Hot melt
Frame thickness (mm)	120/150/220
Clapboard	0.035mm aluminum foil
Efficiency	99.99%-99.999%@0.3um
Max Temperature	80℃
Max Humidity	80%

/ Products Parameter

Dimension(mm) (WHD)	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance(Pa) (H13-H14)	Finally Resistance (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

/ Primary Resistance & Face Velocity Diagram

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 10

/ Product Details

part.1

Abosulte HEPA air filter

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 11

part.2

Absolute Hepa Air Filter With EVA Gasket

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 12

part.3

Deep Pleats Media Compact

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 13

/ package

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 14

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 15

knife edge air filter replacement with one side gasket for electronic industry HAOAIRTECH 16
