We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

Extended Surface Box Filter 1
Extended Surface Box Filter 1

Extended Surface Box Filter

    oops...!

    no product data.

    Go to homepage

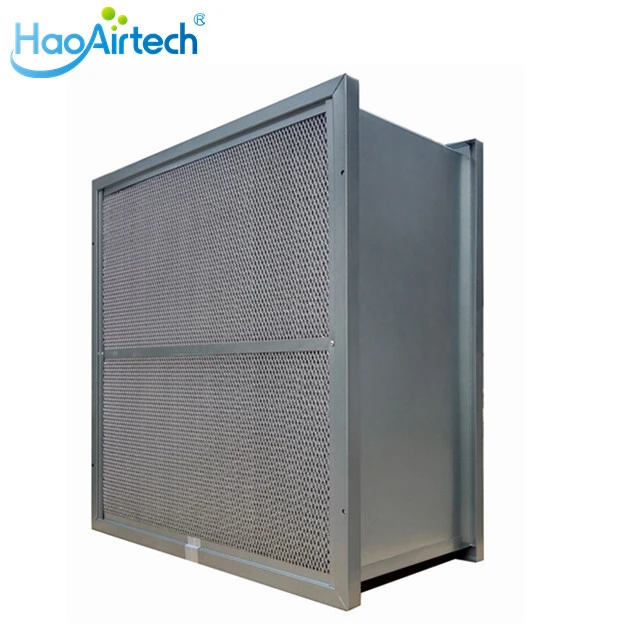

    Extended Surface Box Filter


    Extended Surface Box Filter 2

      Products Features:


          * Availble in three efficienies on 0.3micron size particles;(99.97% 99.99% HEPA)

            and 99.999% ULPA).

         *  Standard and high capacity models.

         * standard construction is galvanied steel cell sided or particle board cell sides.

         * multiple cell side options .

          * factory tested for efficiency and performance

    Products Parameter

     Dimension

      (mm)

    (W*H*D)



      Rate

    Air   Flow

      (m3/h)

    Media   Area

       (m2)

    Dust   Holding

       (g)

    Rate   primary

    Resistance

       (Pa)

     Finally

    Resistance

       (Pa)

    Efficiency

    289x594x150

      675

    4.3

    261



       <60



    250-300

    F6

    594x594x150

      1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185

    289x594x150

      675

    4.3

    261



    <80



    300-400

    F7

    594x594x150

    1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185

    289x594x150

    675

    4.3

    261



    <100



    300-400

    F8

    594x594x150

    1385

    8.84

    354

    287x594x292

    1490

    9.52

    571

    594x594x292

    3085

    19.7

    1185

    Extended Surface Box Filter 3

     Introduce:

     Extended Surface Box Filter ASHRAE Rated Rigid Air Filter Offers High Efficiency Filtration,

    And Is Designed For Use In “Variable Air Volume” And Turbulent Commerical Industrial Systems.

     Extended Surface Box Filter Method Of Sealing The Media Pack To The Supporting

    Frame Prevents The Possibility Of Particulate Migration Around The Filter Media By Sealing The Media On All Four Sides.


    The Extended Surface Box Filter's Robust Construction Enables It To Withstand

    The Extraordinary Operating Parameters Associated With Centrifugal Compressors,

    Gas Turbines And Engines Where Severe Pulsing And Surging Can Occur, In Either Airflow Direction.

    The Extended Surface Box Filter HT (High Temperature) Filters Are Specially

     Designed For Applications That Demand High Efficiency Filtration In A High Temperature Environment,

    Such As An Automotive Finishing Oven

    Extended Surface Box Filter 4
