Company Advantages1. The product can maintain high air quality of the factory. HAOAIRTECH material for dispensing unit is different from other companies' material and it's better.
2. With premium quality, the product is also fit for working under difficult operating conditions. HAOAIRTECH will promote innovation work, and strive to develop more, newer and better products.
3. dispensing booth has the advantages as dust containment booth, and develops very fast in China. The product stands out for its high efficiency for purification
4. The product assures an extremely high-efficient manufacturing process. with the characteristics of sample booth design, sampling booth,dispensing booth pharmaceutical industries can complete meet the production need.
Product Features
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14
and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
/ Products Parameter
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm)
(W*D*H) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm)
(W*D*H) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) |
Air speed | 0.45m/s +_20% |
Material(Option) | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
Control system | 1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost, |
Noise level(dB) | <65dB |
Filter step | 3 Step |
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter |
Secondary filter | F8 pocket air filter |
Pre-filter Efficiency | G4 Z-Line panel air filter |
Power supply | 380V/50HZ OR 220V/50HZ |
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
/ Specification

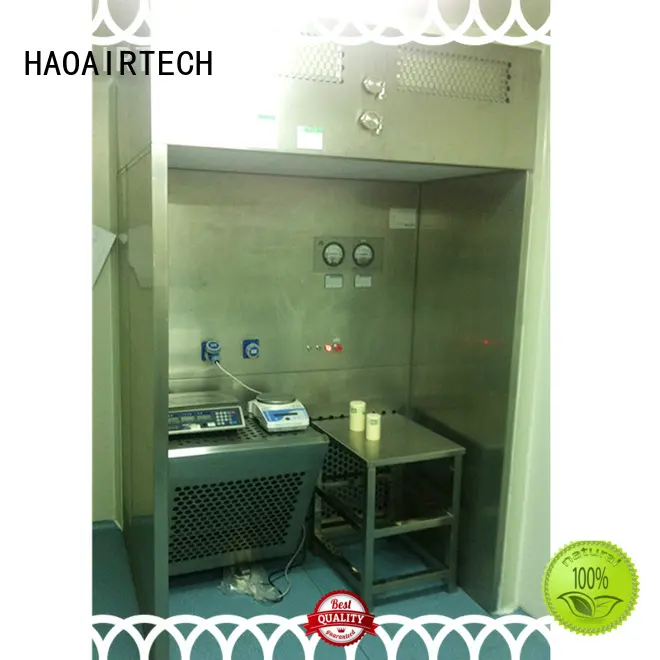

![Hot dispensing unit dispensing HAOAIRTECH Brand 10]()
/ Product Details
Application
Dispensing booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
/ Certificated
/ Our Service
Our Service
1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features1. Equipped with a complete set of quality control technology, dispensing booth can be guaranteed with good quality.
2. HAOAIRTECH's devotion is to offer the most professional customer service which ranks top in sampling booth industry. Get more info!
